Monoshox NG PLUS M/ME
A universally recognized solution offering optimized emergence
CROP TYPE
Maize Sugarbeet
Sunflower Rapeseed Beans
Soya Beans Sorghum etc.
NUMBER OF ROWS
4 to 16 rows
INTER-ROW SPACING
37.5cm to 80cm
TILLAGE
Traditional
Low till
faites glisser pour faire tourner le semoir
This metering unit is equipped with advanced technologies meeting farmers' requirements and making it:
- Faster due to its Monoshox suspension with shock absorber
- More accurate for all seed types with its fast detaching tip
- Easier to adjust with its parallel linkage allowing rapid pressure adjustment and new rear unit with adjustment levers.

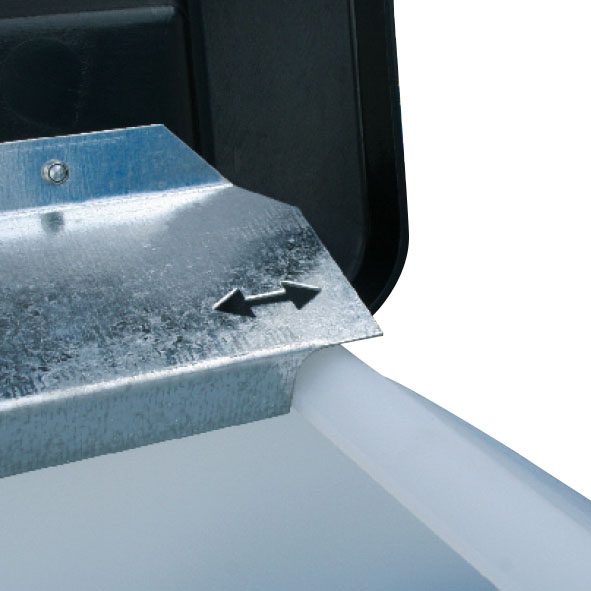

Hopper
The durable translucent plastic hopper has a 52L capacity. The cover locks to secure the contents.

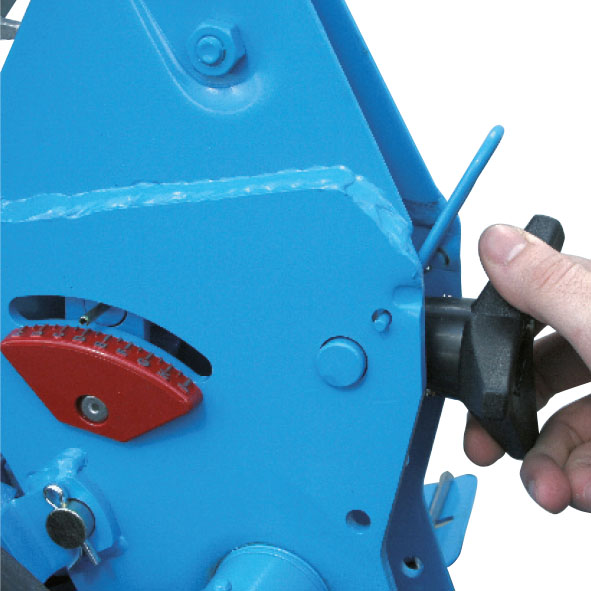

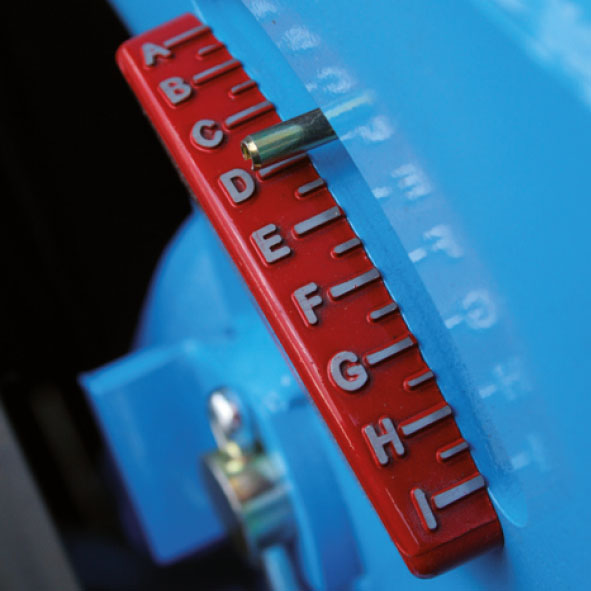

Depth adjustment
Depth is easy to adjust using a hand wheel. This type of adjustment mechanism provides high-precision control of planting depth. It is easy to spot at the rear of the unit and is both wash and weather-proof

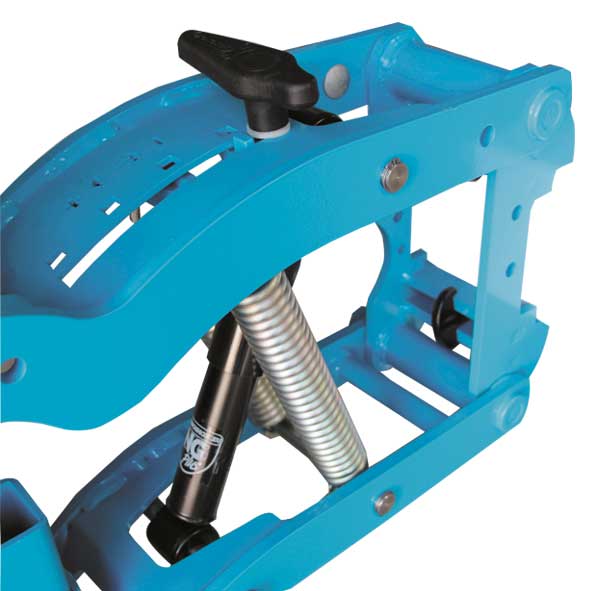

Wide parallel linkage with rapid pressure adjustment
Pressure is increased using two springs that can be adjusted tool-free, pressing the metering unit against the ground to give it greater stability. The width of this reinforced parallel linkage has also been increased to improve unit stability.

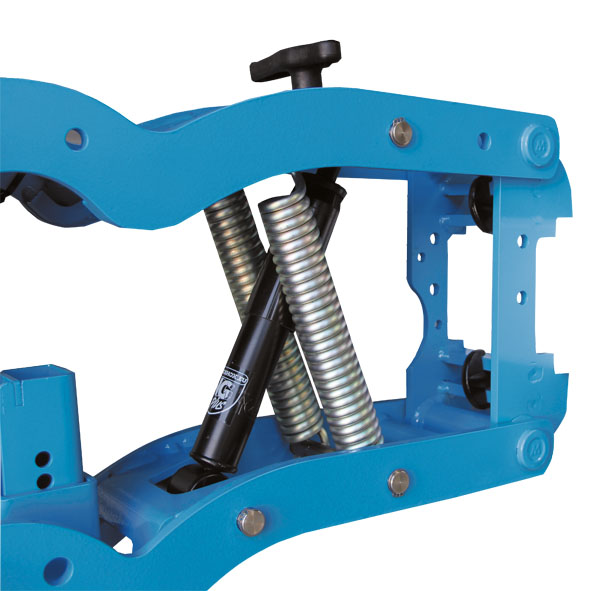

Monoshox suspension with shock absorber
The Monoshox suspension system with shock absorber consists of pressure springs and a specially designed shock absorber. When operating, the two pressure springs press the metering unit against the ground, while the suspension with shock absorber absorbs any shocks. This maintains optimal planting precision and depth consistency.

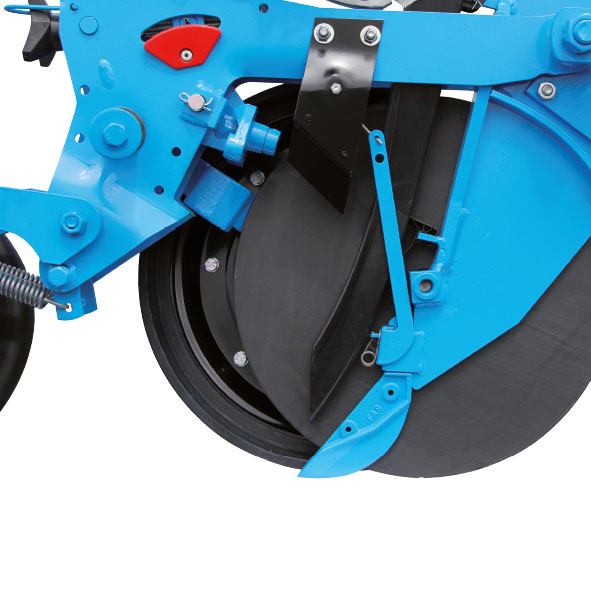

Fast detaching tip
Using the patented system enabling the tip to be changed quickly and tool-free, you can be sure of always having a tip that forms a true V-shaped furrow for accurate seed placement at a consistent depth, no matter what the planting depth or seed type (maize, rapeseed, beans, etc.).
Adjustable open closing wheel unit*
The Monoshox NG Plus ME unit is equipped with a rear closing wheel unit with levers for adjusting wheel pressure and angle*. The rear closing wheels can be adjusted quickly to suit planting conditions by changing their pressure and angle settings.
* Equipment may vary by country*Â

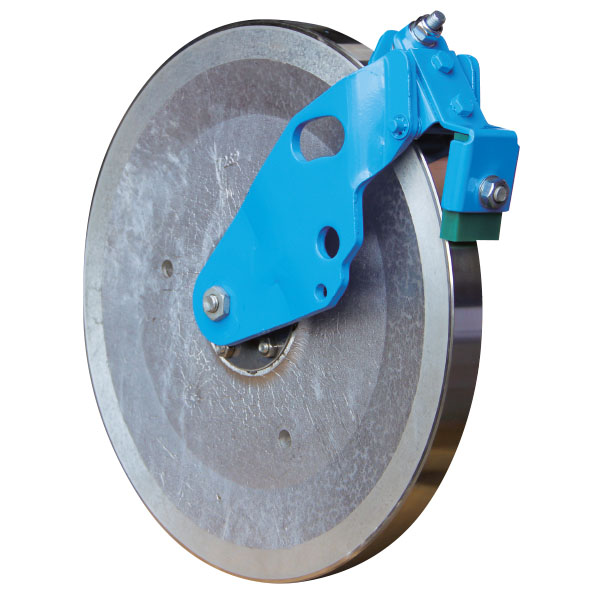

Pro wheel (optional)
The aluminium Pro wheel is fitted with a stainless-steel tire and a plastic scraper. With its large diameter (380mm), the Pro wheel offers high-quality pressing and excellent seed placement.

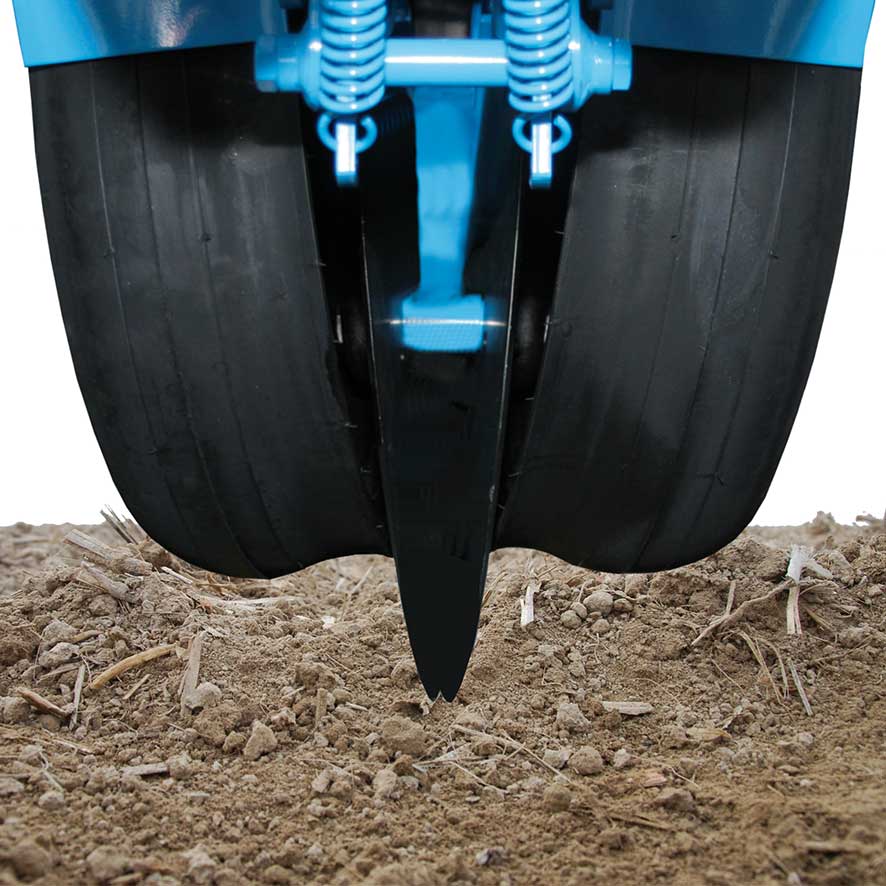

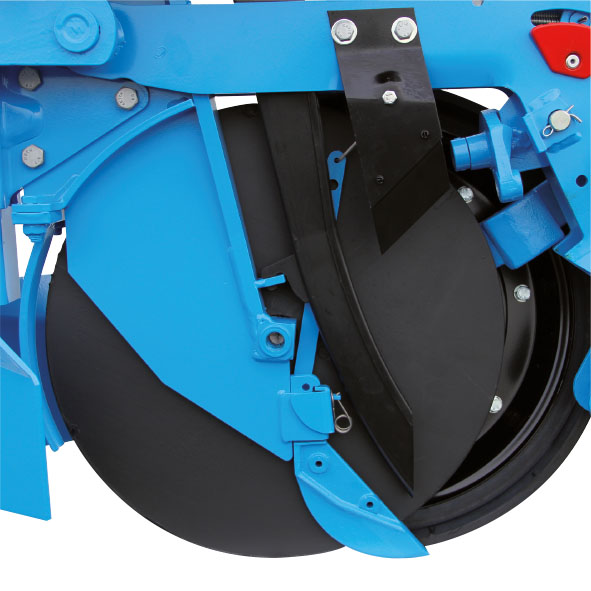

Double opener discs
The planting system consists of two large-diameter discs (380mm) mounted on sealed ball bearings.

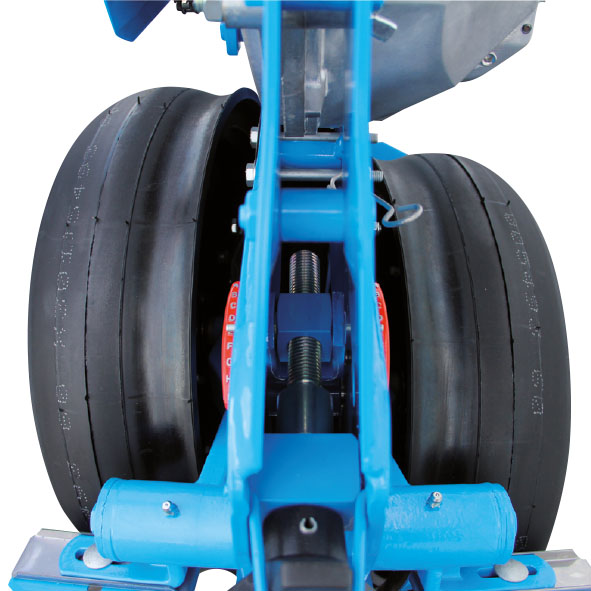

Gauge wheels
These large wheels (110mm) with very high load-bearing capacity allow optimal control of working depth. The positioning of the wheels in line with the seed drop ensures exceptional depth consistency.

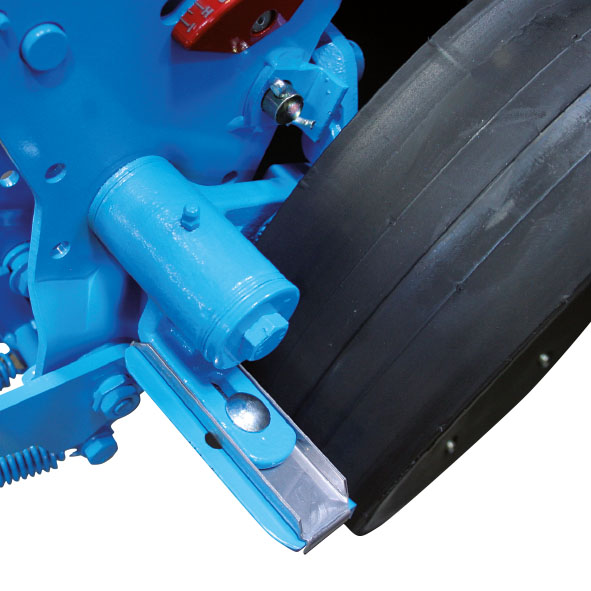

Gauge wheel arms
The gauge wheel bracket arms are mounted on replaceable bushes and have spiral grooves for even grease distribution. Scrapers are fitted as standard on the gauge wheels.

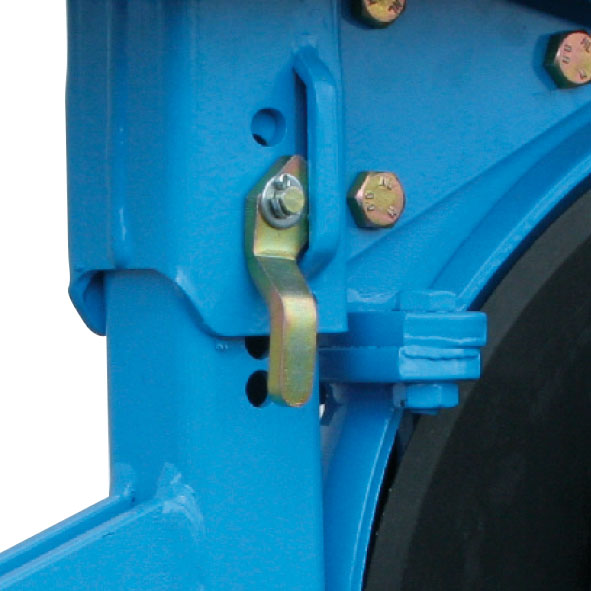

Clod remover bracket
The clod remover can be adjusted quickly and precisely with a choice of 12 positions. To adjust to different planting conditions, the clod remover can be quickly swapped for trash wheels with no tools required.
The durable translucent plastic hopper has a 52L capacity. The cover locks to secure the contents.
Depth is easy to adjust using a hand wheel. This type of adjustment mechanism provides high-precision control of planting depth. It is easy to spot at the rear of the unit and is both wash and weather-proof.
Pressure is increased using two springs that can be adjusted tool-free, pressing the metering unit against the ground to give it greater stability. The width of this reinforced parallel linkage has also been increased to improve unit stability.
The Monoshox suspension system with shock absorber consists of pressure springs and a specially designed shock absorber. When operating, the two pressure springs press the metering unit against the ground, while the suspension with shock absorber absorbs any shocks. This maintains optimal planting precision and depth consistency.
The aluminium Pro wheel is fitted with a stainless-steel tire and a plastic scraper. With its large diameter (380mm), the Pro wheel offers high-quality pressing and excellent seed placement.
The Monoshox NG Plus ME unit is equipped with a rear closing wheel unit with levers for adjusting wheel pressure and angle*. The rear closing wheels can be adjusted quickly to suit planting conditions by changing their pressure and angle settings.
* Equipment may vary by country
Using the patented system enabling the tip to be changed quickly and tool-free, you can be sure of always having a tip that forms a true V-shaped furrow for accurate seed placement at a consistent depth, no matter what the planting depth or seed type (maize, rapeseed, beans, etc.).
The planting system consists of two large-diameter discs (380mm) mounted on sealed ball bearings.
These large wheels (110mm) with very high load-bearing capacity allow optimal control of working depth. The positioning of the wheels in line with the seed drop ensures exceptional depth consistency.
The clod remover can be adjusted quickly and precisely with a choice of 12 positions. To adjust to different planting conditions, the clod remover can be quickly swapped for trash wheels with no tools required.
The gauge wheel bracket arms are mounted on replaceable bushes and have spiral grooves for even grease distribution. Scrapers are fitted as standard on the gauge wheels.
Benefits of the MONOSHOX NG PLUS M
COST & OPERATION
- Competitive price
- Quick to start up
- Tried-and-tested operation
- Intuitive handling
- Easy to start up
BENEFITS OF THE MONOSHOX NG PLUS ME
EASE-OF-USE & PRECISION
- Settings adjusted in cab
- Easy to maintain
- Easy to operate at field ends
- Non-stop control
- Non-slip
- AEF-certified ISOBUS compatibility
- Savings on seeds (GPS-guided row cut-off system)
- Optimized planting due to GPS-guided variable rate control
- Precision settings
Disc PLANTING
Since 1989, Monosem has applied the concept of planting with the planter resting on the ground directly in line with the seed drop.
This tried-and-tested planting method is versatile and accurate, and moreover cuts down on maintenance.
This unit combines quality metering with disc planting, resulting in optimal use of the planter over very large areas reducing its operating costs.
Clod removers and trash wheels clear the way for the seed line, removing any clods, stones or plant debris.
These discs open the furrow to a depth defined by the gauge wheels.

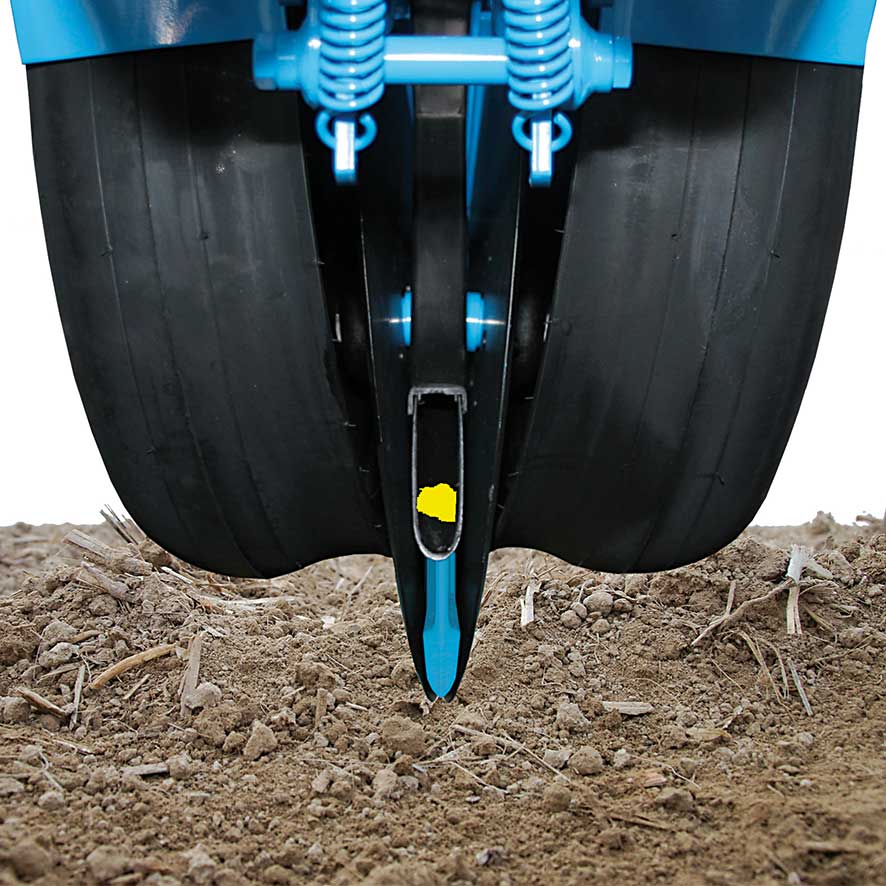

This finishes the furrow bottom for optimal seed placement.
The shape of the tube is specially designed to guide the seeds gently to the ground at perfectly consistent intervals.

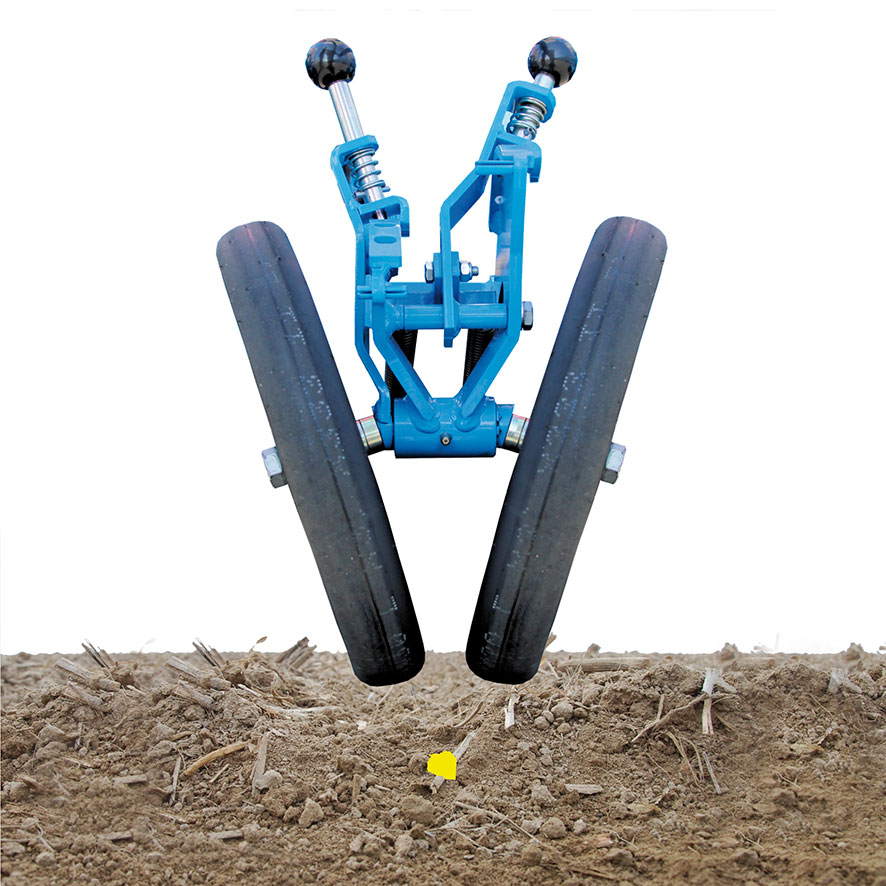

This wheel unit composed of 2 tilted wheels closes the furrow around the seed to ensure optimal seed germination.
* Equipment may vary by country
A game-changing concept
Inconsistent depth can result in up to 9% lower yield.
Avoid this risk by choosing the Monosem planting system.
- Rests on the ground directly in line with the seed drop
- Perfect contour following
- Outstanding performance in all conditions
This planting concept offers significant operating versatility encompassing all soil and tillage types. Whether you apply traditional or low-till techniques, double-disc planting is the perfect solution.
METERING System TO ACHIEVE QUALITY PLANTING, YOU NEED A GOOD METERING SYSTEM.
That's why Monosem has harnessed all its expertise to offer you an accurate, simple and highly reliable metering system.
The Monosem metering system exhibits manufacturing quality that has earned it a global reputation.
Its vacuum system allows an unrivalled range of seeds to be metered.
Accept nothing less than this flagship Monosem product for your crops.
The metering box is made of cast aluminium. This means it will lose none of its accuracy over the years regardless of temperature variations.

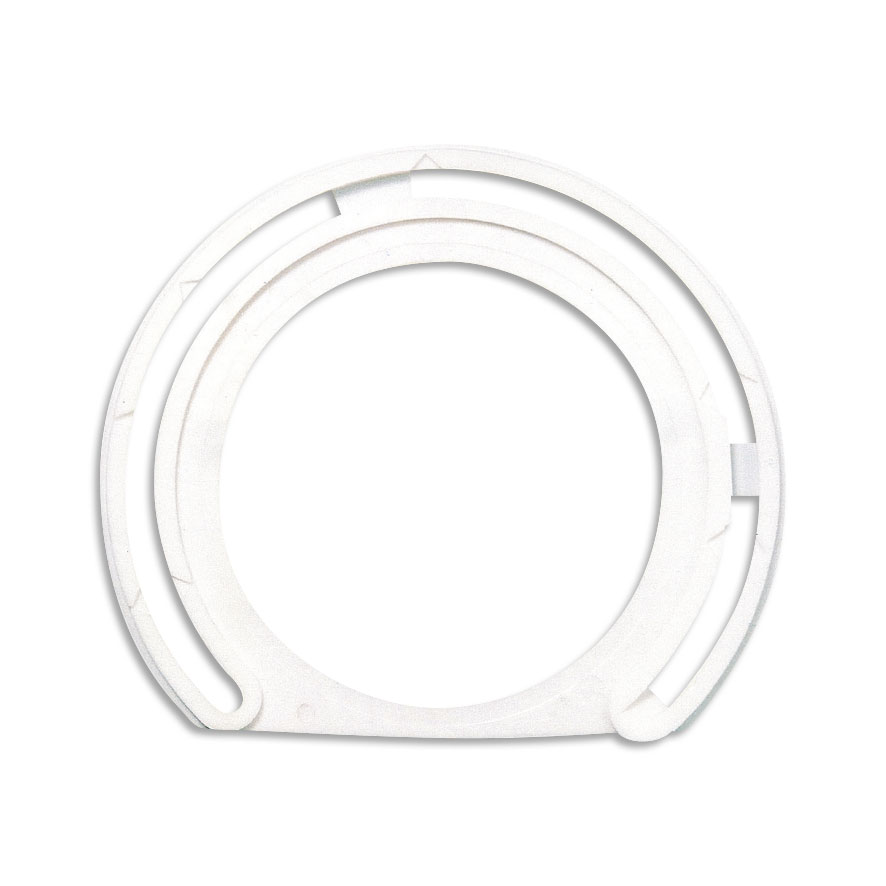

The wear gasket is in permanent contact with the disc. It makes the metering box leak-proof and can be replaced.

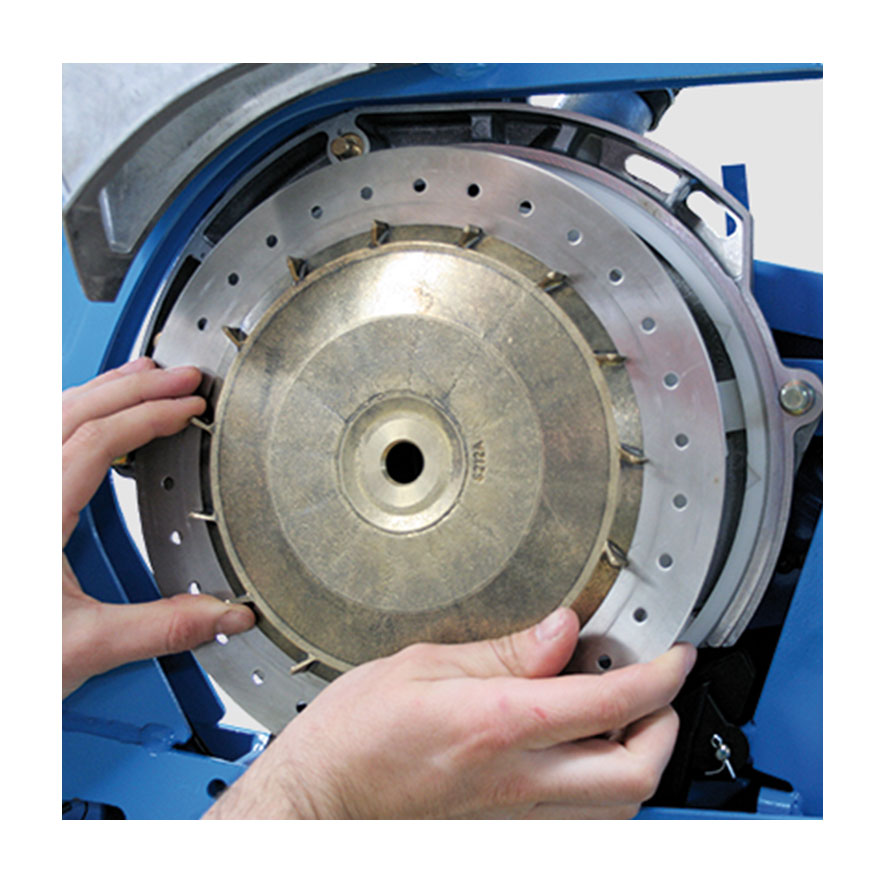

These 1.5mm thick discs are made of stainless steel. The agitator fixed to the disc strengthens the unit. Discs are easy to change tool-free. A full range of discs is available meeting all single-seed planting requirements.

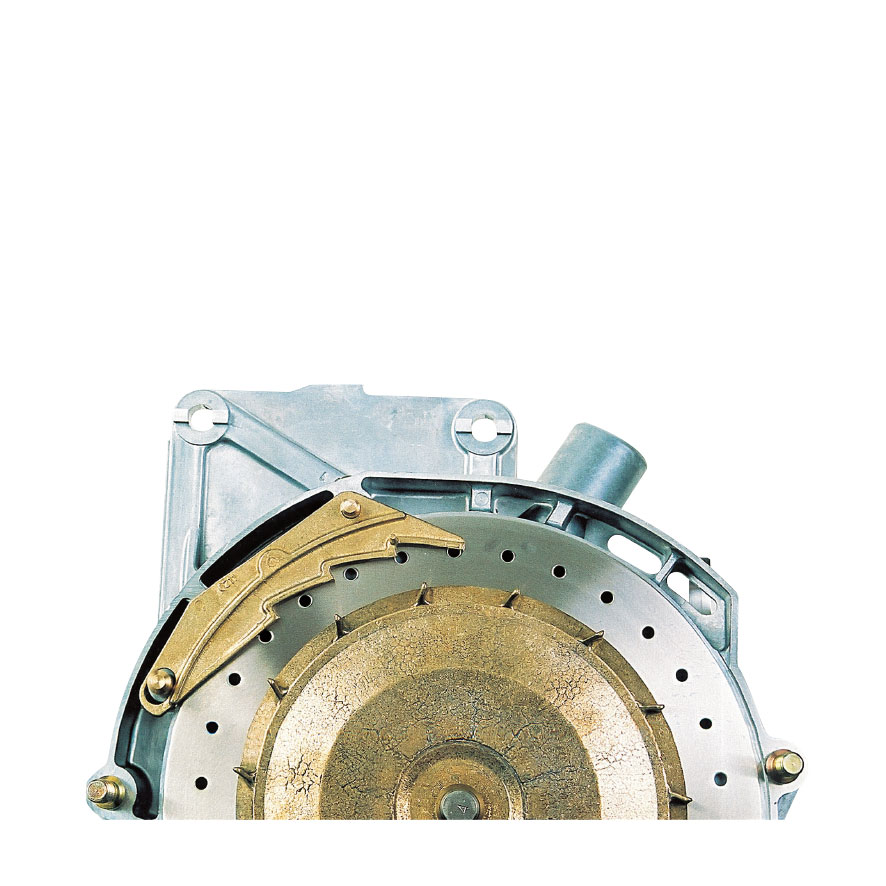

The bronze singulator prevents any duplicates. A spring on the metering box cover holds the singulator perfectly in place against the disc for optimal metering, even with small seeds.

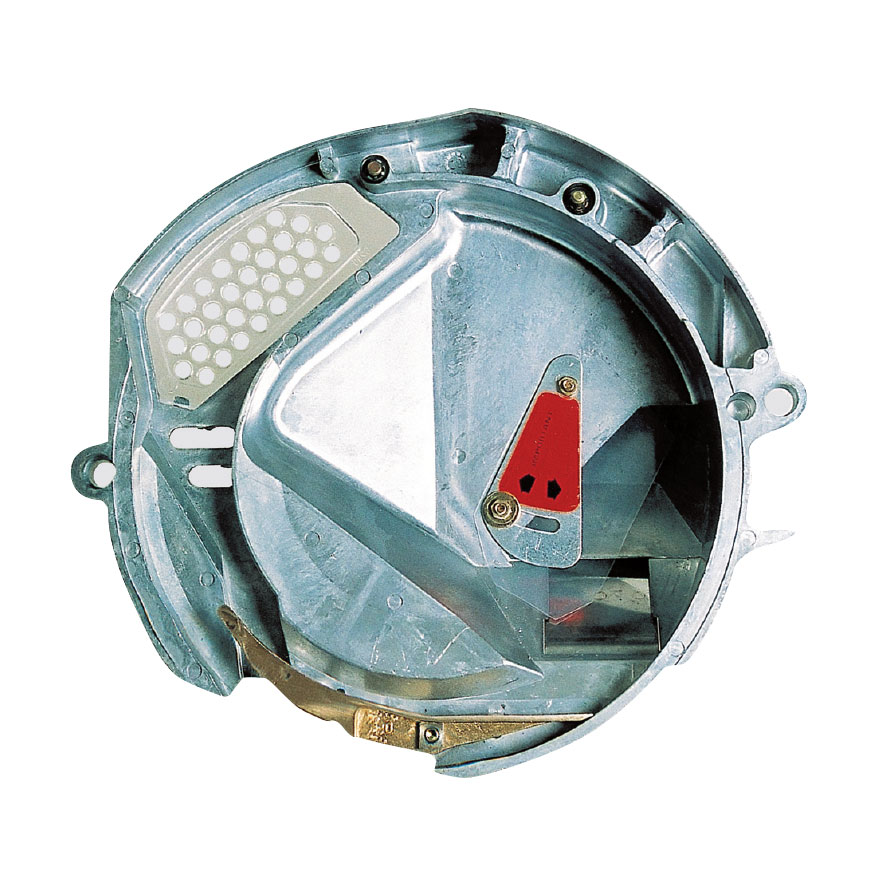

The cast-iron cover is specially designed for planting with minimal seed reserves.

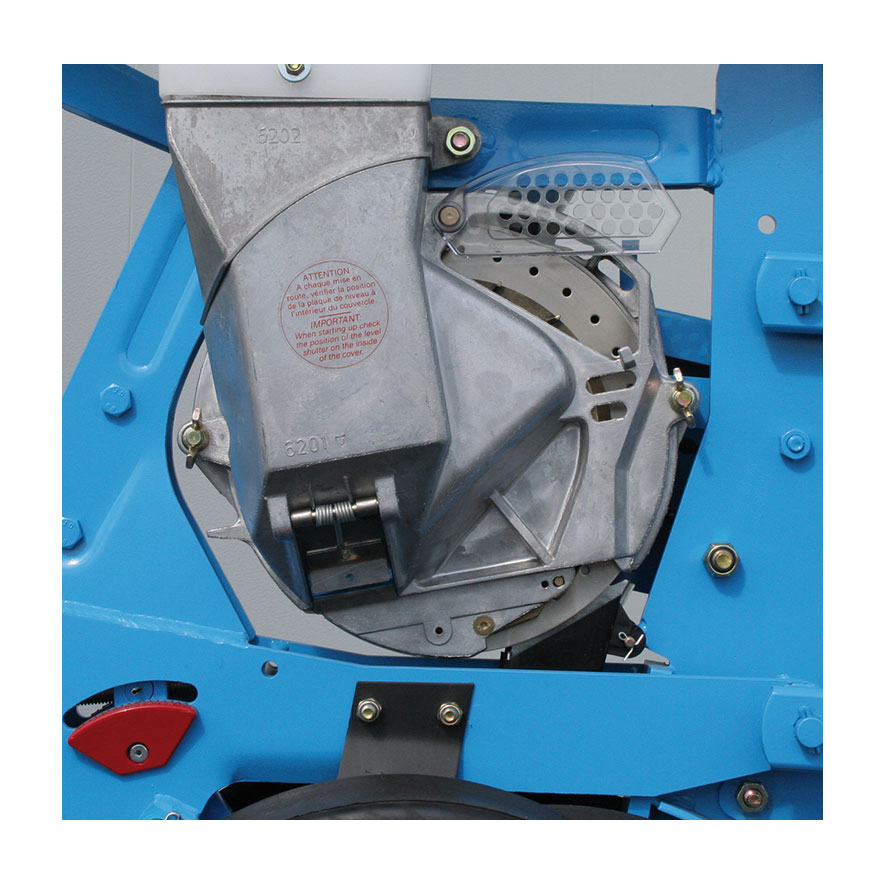

The metering system is highly accessible, both for adjustments and monitoring. A large transparent window can be used for monitoring metering after the singulator.

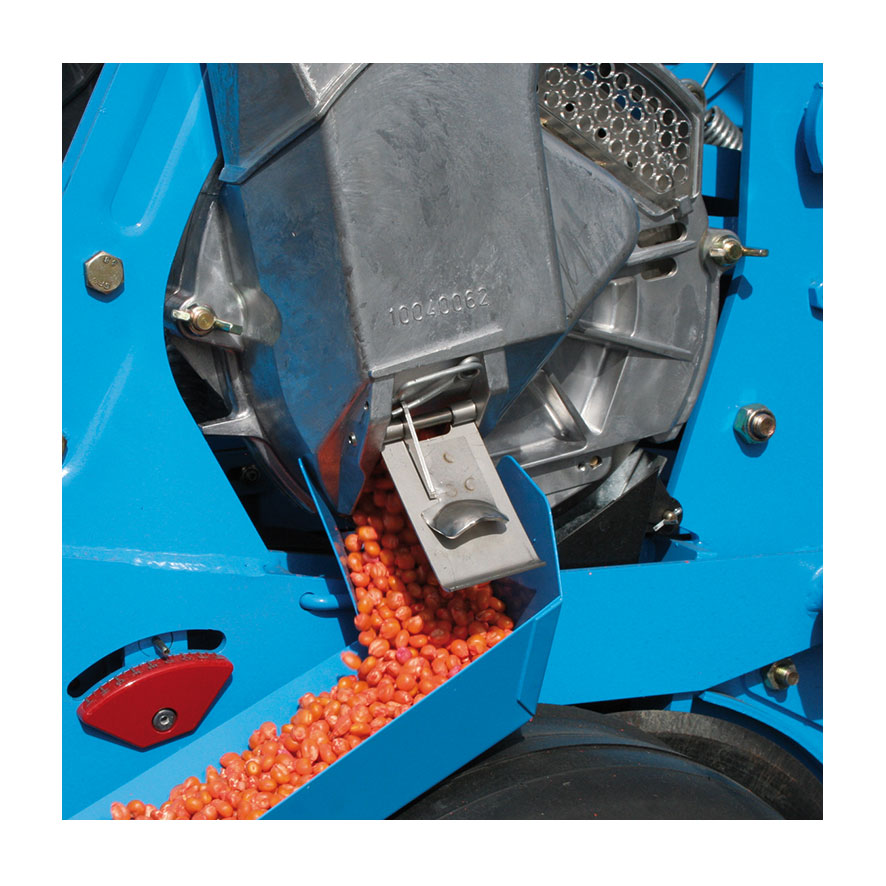

The emptying hatch is extremely convenient to operate. When you open the hatch, it stays open making it even easier to fully empty the unit using the emptying chute supplied as standard.
Optional

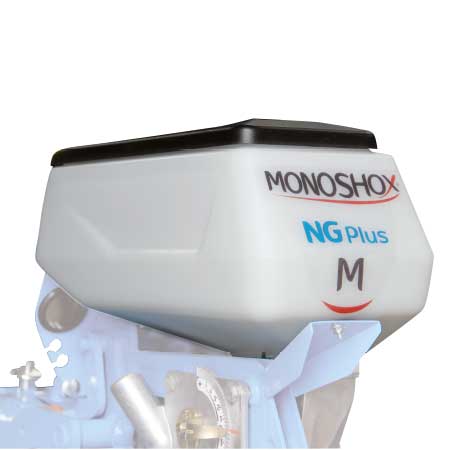

Narrow hopper
Specially designed for crops requiring smaller inter-row spacing (sugarbeet, rapeseed, beans, etc.).
Narrow trash wheels
Narrow retractable trash wheels are available for planting with lower inter-row spacing.

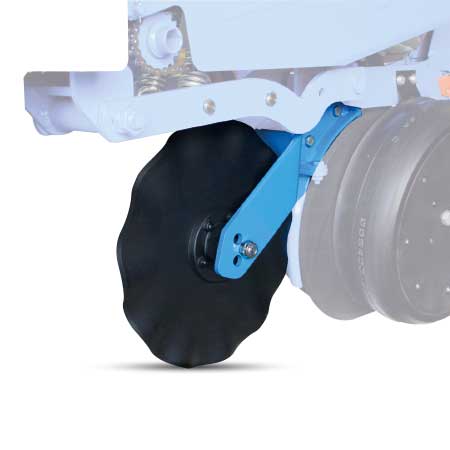

Circular coulter
Smooth or rippled, the circular coulter improves furrow opening and produces fine soil for low-till planting and/or in trashy soils.

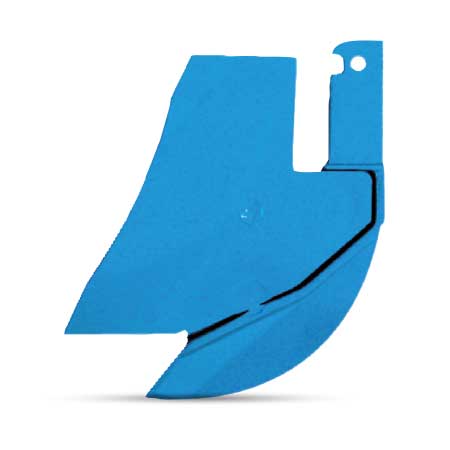

Shoe with long tip and short wings
The special shoe with a long tip and short wings is specially designed for planting in dry soils and for small seeds.
Metal closing wheels
Our metal closing wheels with notched discs are recommended for highly caked soils or to improve furrow closure in no or low-till conditions.

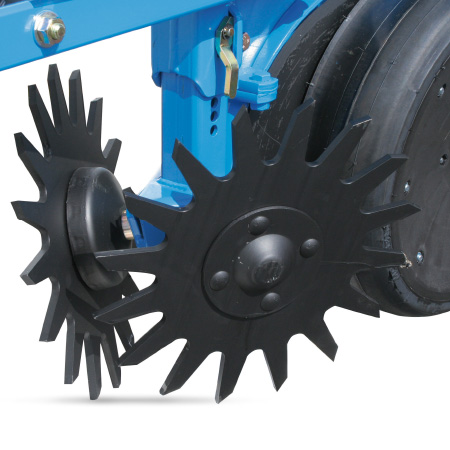

Trash wheels
Trash wheels can be fitted instead of a clod remover when planting in trashy soils.
Clod remover with flexible bracket
A clod remover on a flexible bracket is recommended for planting in stony soils.

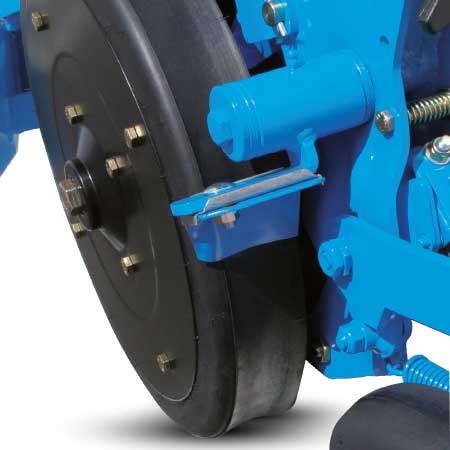

Narrow-gauge wheels
5cm narrow-gauge wheels are available for planting with low inter-row spacing.
Why choose the monoshox
Ng plus m/me planter ?
Unfailing stability
Monoshox® suspension by Monosem
Unprecedented versatility
Metering system compatible with over 70 seed types
Laser-like precision
All the benefits of Monosem's patented planting system with its Pro wheel
Why choose the monoshox
Ng plus m/me planter ?
Unfailing stability
Monoshox® suspension by Monosem
Unprecedented versatility
Metering system compatible with over 70 seed types
Laser-like precision
All the benefits of Monosem's patented planting system with its Pro wheel
EXPERIENCE the NG PLUS M/ME in action
tried AND TESTED
IN THE FIELD
Tested, approved and universally recognized
The NG Plus M/ME has been working fields and optimizing yields for several years. We have fine-tuned it to our users' complete satisfaction based on the extensive feedback received.
THE FULL PICTURE
on the ng plus M/ME
Unique features for its class
We all know a picture speaks 1000 words… That's why we put together a 3D video giving a 360° view of this planter. Find out more about the key strengths of the NG Plus M/ME.
Microsem's primary objectives are to nurture and protect seeds.
Distributing microgranules requires just as much care and precision as planting.
Our auger-based Microsem system ensures consistent distribution of insecticides, molluscicides and even fertilizers.
Microgranules are positioned very close to seeds, protecting them from pests and providing them with all the nutrients they require for uniform shoot emergence.
An 18-ratio gearbox is used to adjust the microgranulators:
- Using the chart

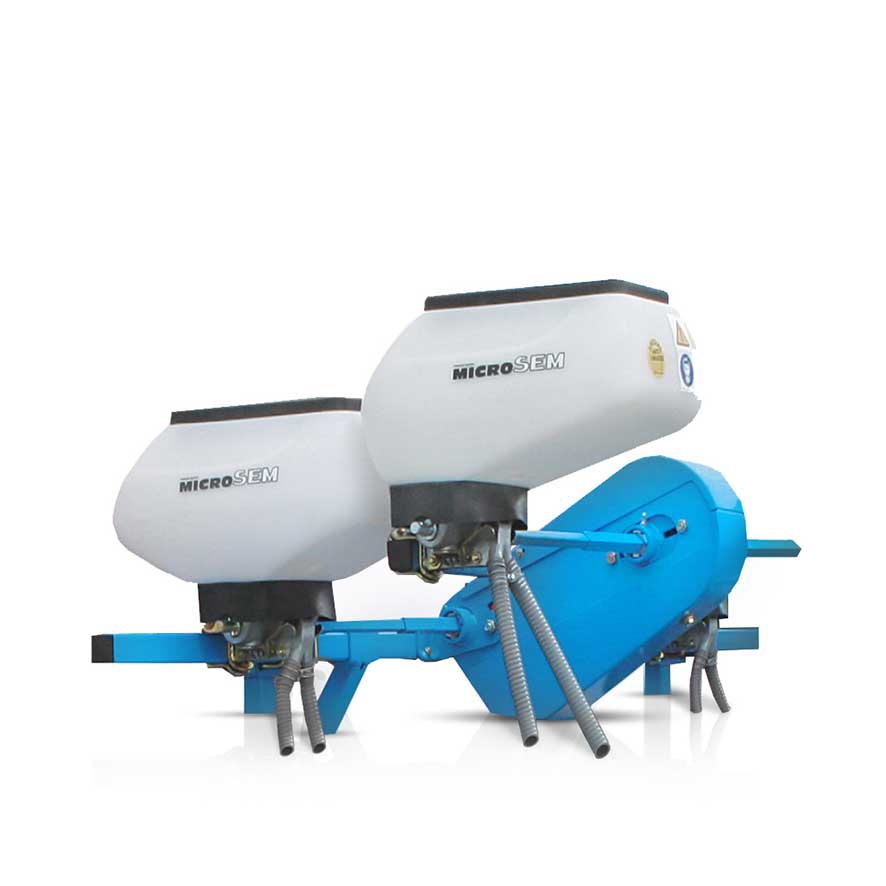

Insecticide and molluscicide Microsem units can be combined for simultaneous supply of both products.

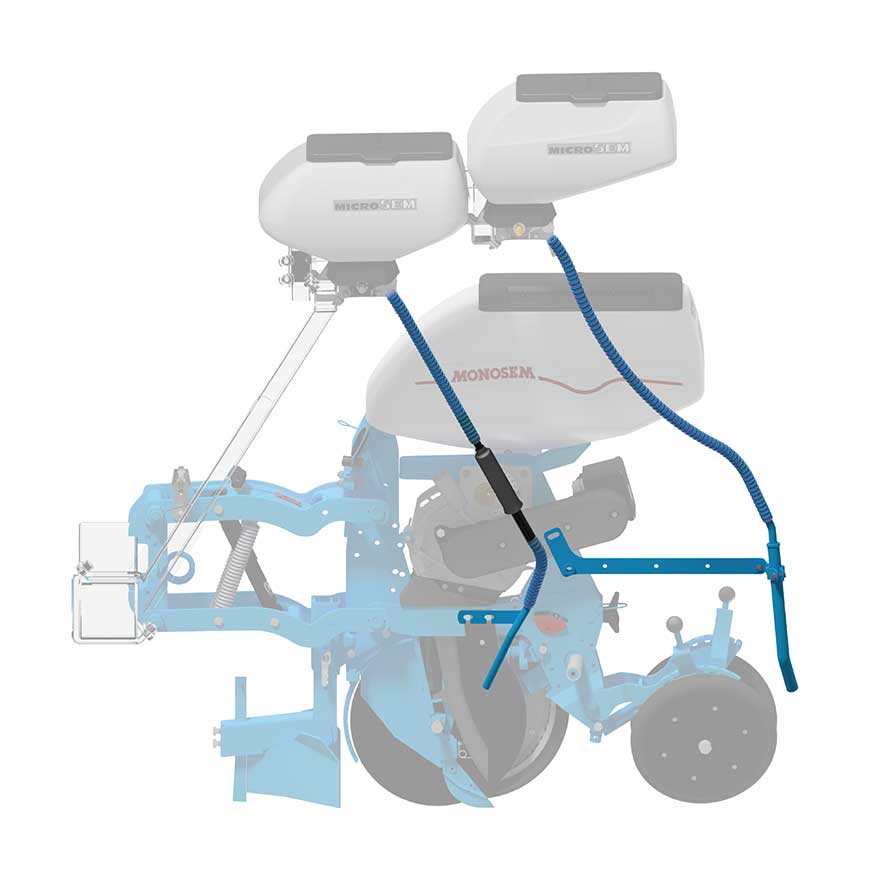

Our microgranulator is equipped with two drop lines metering different products. One distributes products in the seed line and the other either in front of or behind the closing wheels.
Using the hatches and chute, it's quick and easy to empty any remaining products.
The microgranules contained in the hopper are taken up by 2 augers. Agitators ensure an even supply to these augers. A finger wheel then distributes the product consistently in the drop lines.
Insecticide: 3 to 25kg/ha for inter-row spacing of 75cm
Molluscicide: 3 to 10kg/ha for inter-row spacing of 75cm
Electrically driven Microsem units are available for the NG Plus ME. A mechanical version is also available for the NG Plus M with a variable speed drive enabling quick and easy adjustment of the microgranule rate.

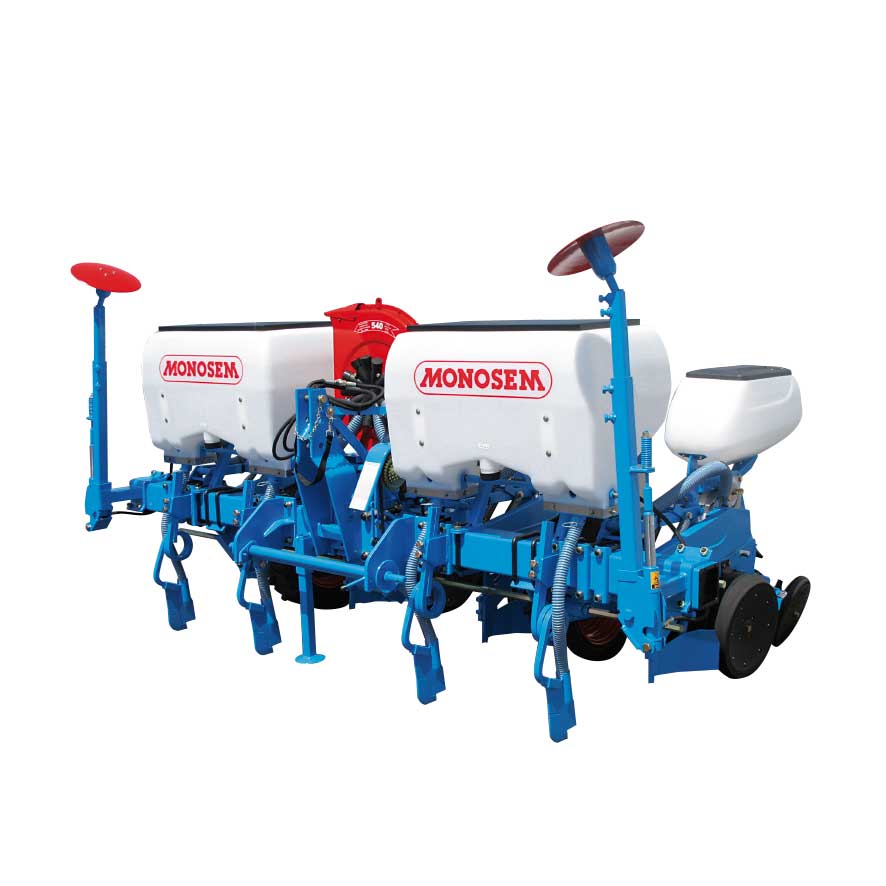

FERTILIZING SYSTEMS
With our full range of standard and high-capacity fertilizers, we can offer a sturdy fertilizer system that suits your planting conditions perfectly.
Fertilizer is evenly distributed using a system combining auger-based metering and agitators.
Stainless-steel augers with different pitches are available, ensuring that exactly the required quantity is metered.
Hoppers are available in various capacities and can be mounted on rigid and telescopic frames.
Electrically or mechanically driven versions are available, supporting you throughout planting and ensuring unrivalled precision.
Just choose the capacity you need! Our high-capacity hoppers have a wide opening and offer reliable metering in all conditions.
A 12-ratio gearbox is used to adjust the quantity of fertilizer metered during planting.
- Using the chart
- With tines: replaceable tip
- Double discs (or reinforced double discs): versatile and more suitable for low-till conditions
Fertilizer is evenly distributed using a system combining auger-based metering and agitators. Stainless-steel augers with different pitches are available, ensuring that exactly the required quantity is metered.
The "standard" augers (A) are blue and meter 80 to 350kg/ha of fertilizer at inter-row spacing of 75cm.
The "high-output" augers (B) are red and meter 160 to 700kg/ha of fertilizer at inter-row spacing of 75cm.
If our mounted hoppers do not meet your requirements, take a look at our front fertilizers and the Monosem CART.
An electrically driven fertilizer is available for the NG Plus ME. A mechanical version is also available for the NG Plus M with a variable speed drive enabling quick and easy adjustment of the fertilizer rate.
A WIDE RANGE OF FRAMES
Monosem supplies a full range of frames that are both durable and flexible to meet all your requirements.
With components including wheel units, a turbofan and seed spacing gearbox, choose a frame to suit your working practices.

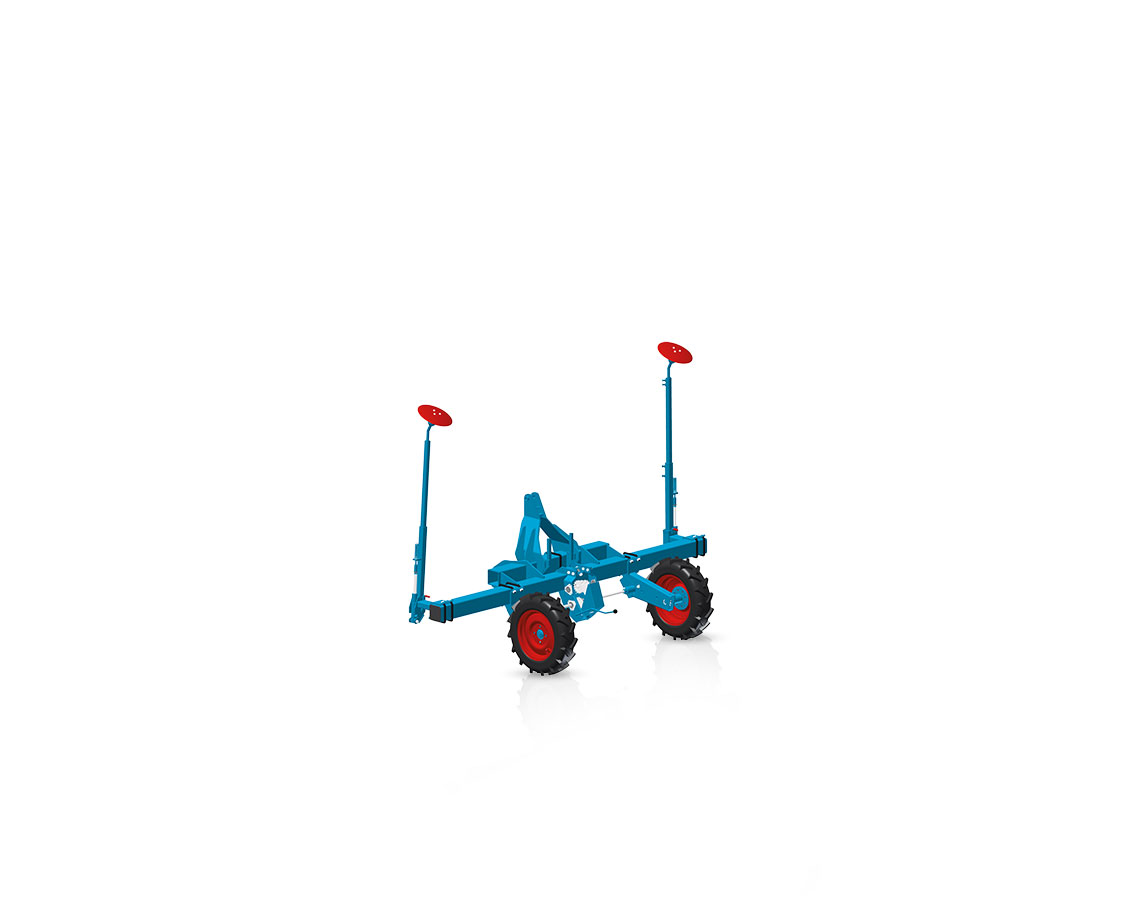

Rigid Frames
Transport carriage available
Whether you require a monoblock, monobar or double-bar frame, take a look at our comprehensive range for inspiration. Our rigid frames are sure to meet all your requirements. They are economical, heavy-duty and reliable giving you peace of mind during planting.
1-12
metering units
37.5-80cm
3-6.1m
3-6.1m

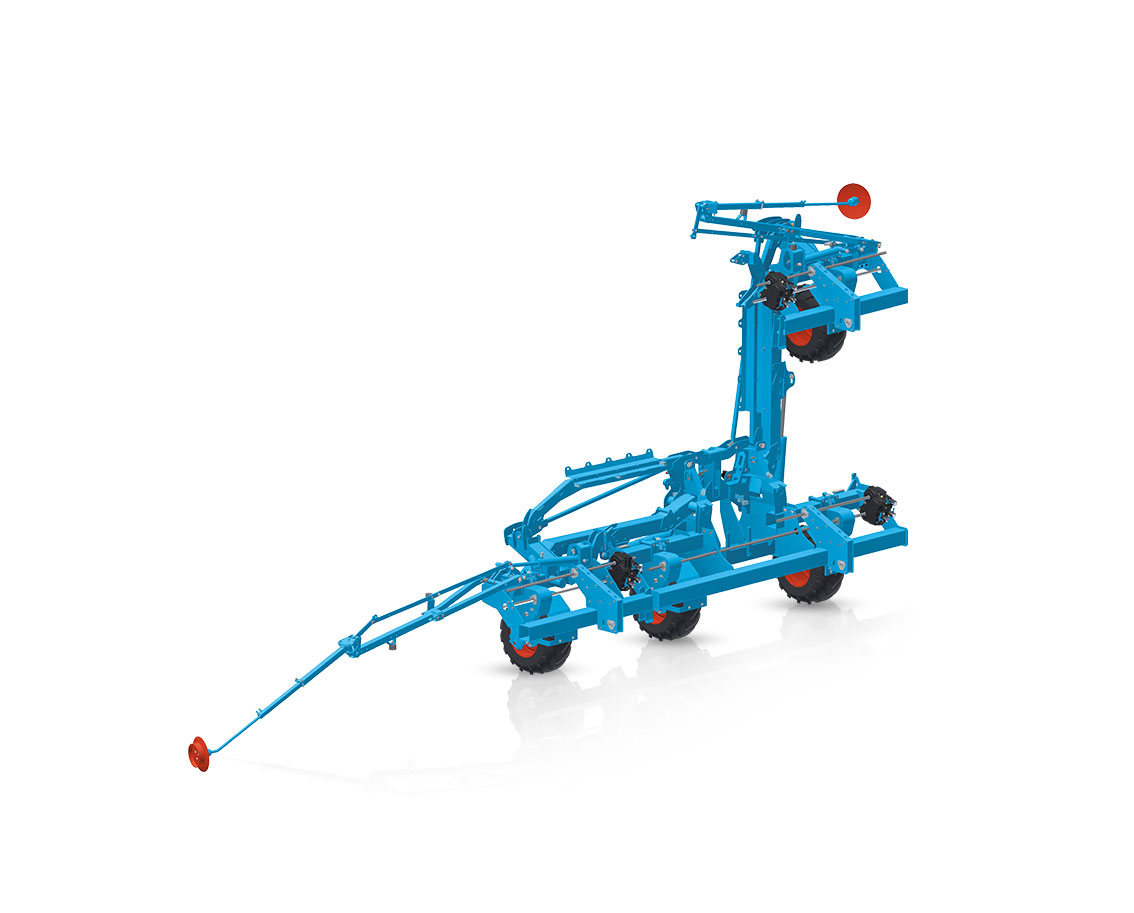

TFC2 Frames
You can choose between the Confort and Confort Mixte models. The former is equipped with floating wings and a mobile front 4-wheel unit that follows the contours of the land perfectly and folds to 3m for road transport. The latter can be converted quickly from 12 rows to 8 rows in no time at all by simply sliding some of the metering units.
8-16
metering units
37.5-80cm
6m
3m

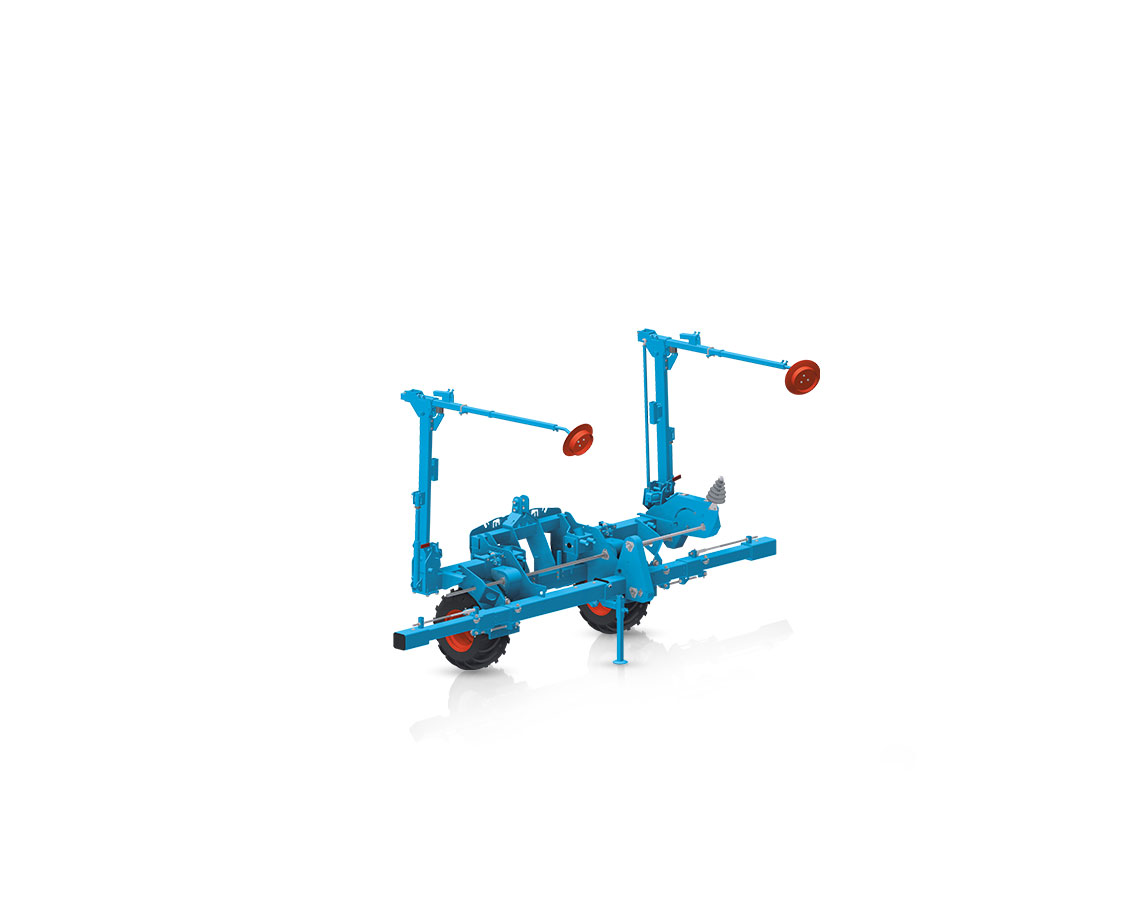

Telescopic Frames
Are you looking for a versatile solution for your planter? Our telescopic frames offer a convenient working width and are also perfectly suited to road transport.
6-9
metering units
35-80cm
2.8-4.5m
3-3.5m

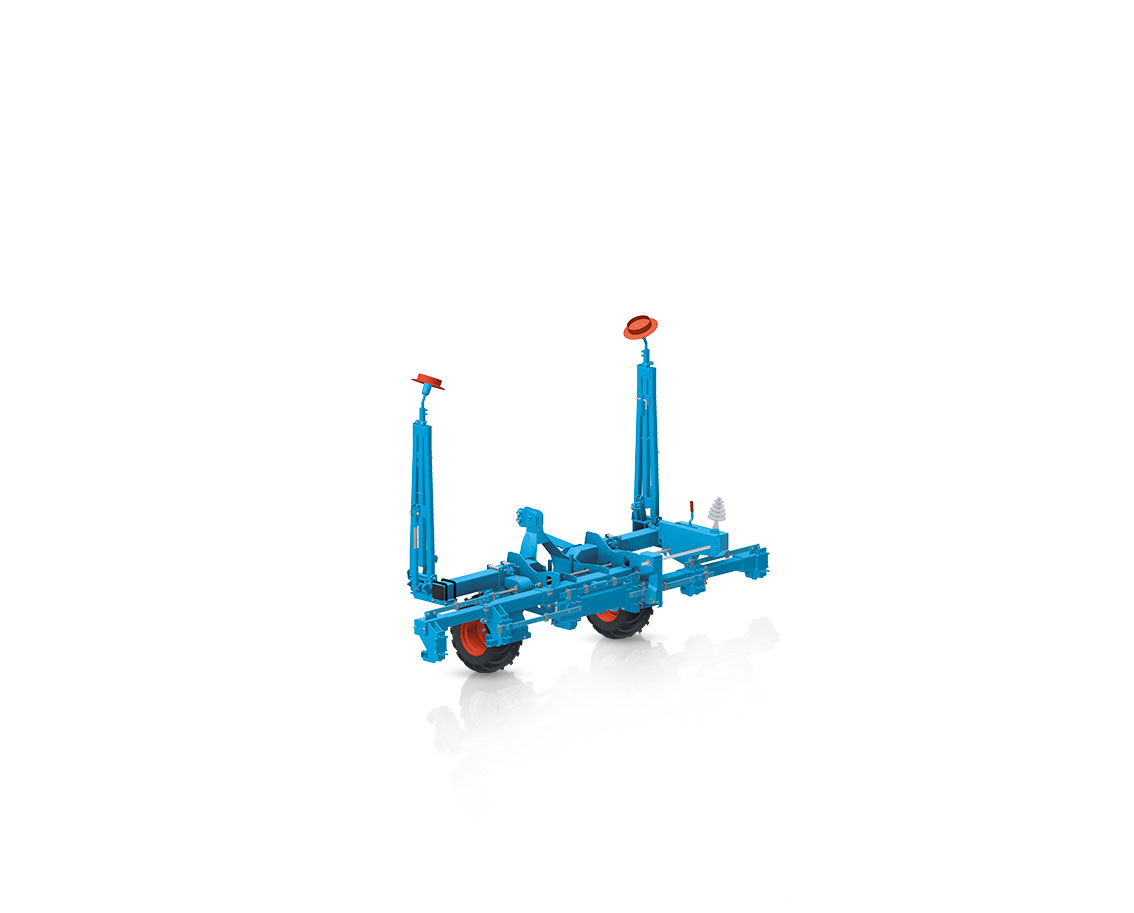

Frames for Variable inter-row spacing
Choose the perfect frame for you, whether it be an Extend or Multislide! Inter-row spacing can be altered using the intuitive hydraulic width adjustment system.
6-9
metering units
37,5-80cm
3-6m
3m

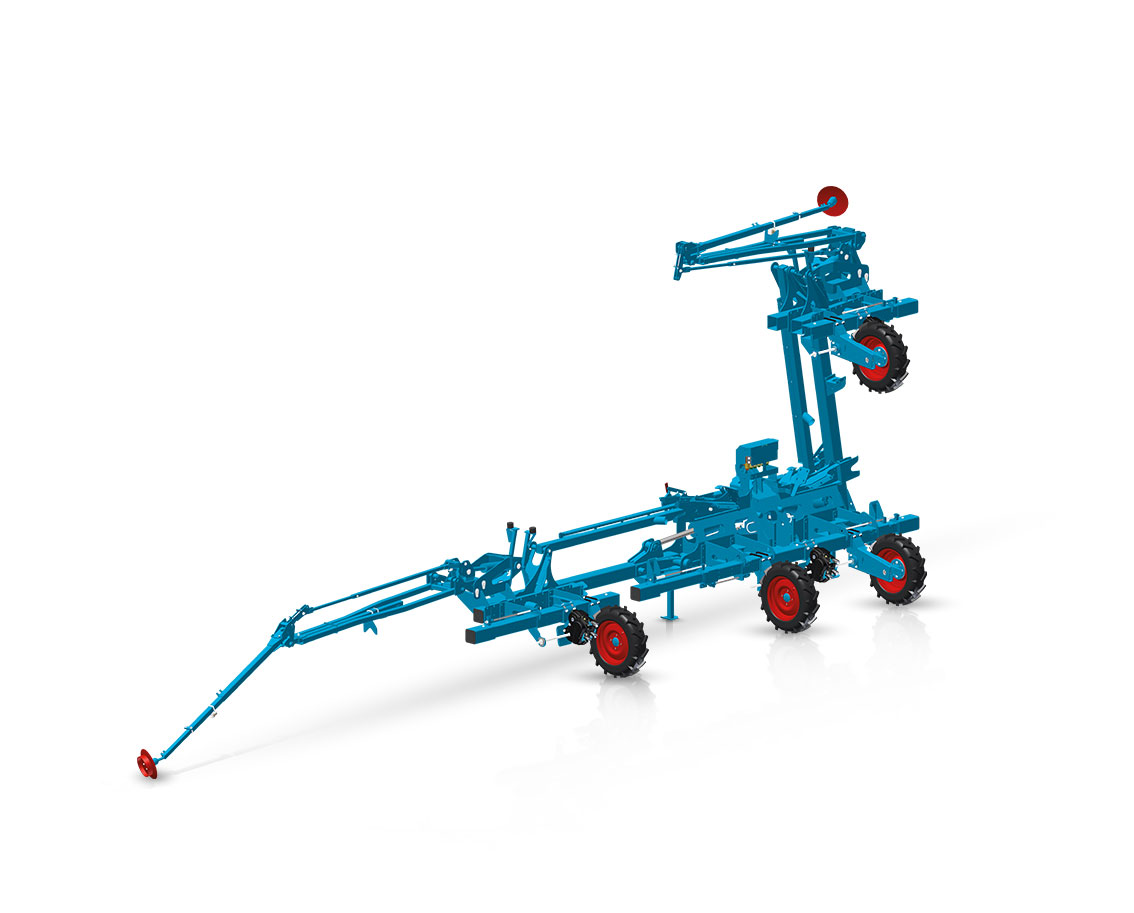

CRT Frame
The CRT is a folding telescopic frame. It is able to follow the contours of the land perfectly in all conditions due to its floating, independent wings with wheel units.
This makes it the ideal solution for undulating or sloping land or even for small fields.
12-13
metering units
60-80cm
9m
3-3.5m
MONOSHOx NG PLUS M/ME
FEATURES
CROP TYPE
Maize
Sugarbeet
Sunflower
Rapeseed
Beans
Soya beans
Sorghum
etc
TILLAGE
Traditional
Low till
No till
NUMBER OF ROWS
4 to 16 rows
INTER-ROW SPACING
37.5cm to 80cm
DRIVE
Mechanical
Electric
CROP TYPE
Maize
Sugarbeet
Sunflower
Rapeseed
Beans
Soya beans
Sorghum
etc
TILLAGE
Traditional
Low till
No till
NUMBER OF ROWS
4 to 16 rows
INTER-ROW SPACING
37.5cm to 80cm
DRIVE
Mechanical
Electric
Are you INTERESTED?
Don't delay a second longer
Documents
Download our manuals and brochures to find out more about the Monoshox NG Plus M/ME
