Multicrop CULTIVATOR
(compact version available)
Guaranteed versatility and adaptability
CROP TYPE
Maize Sunflower Beans
(Cereals Sugarbeet Rapeseed etc.)
NUMBER OF ROWS
1 to 18 rows
(1 to 24 rows)
INTER-ROW SPACING
25cm to 90cm
(18cm to 65cm)
NUMBER OF TOOLS
1 to 5 + rear stand
(1 to 3 + rear stand)
faites glisser pour faire tourner le semoir
A multitasking cultivator unit.
The Multicrop cultivator will expand your operating scope with its numerous configurations and wide range of accessories. With all these options available, you can build your cultivator to meet your requirements.
- Inter-row cultivation eliminating weeds and aerating the soil to a greater or lesser extent depending on the tool used
- Crop rows protected by plant protection discs limiting mud spatter on crops and preventing them from being buried during early cultivation
- On-row cultivation to bury or uproot weeds including those closest to the crops

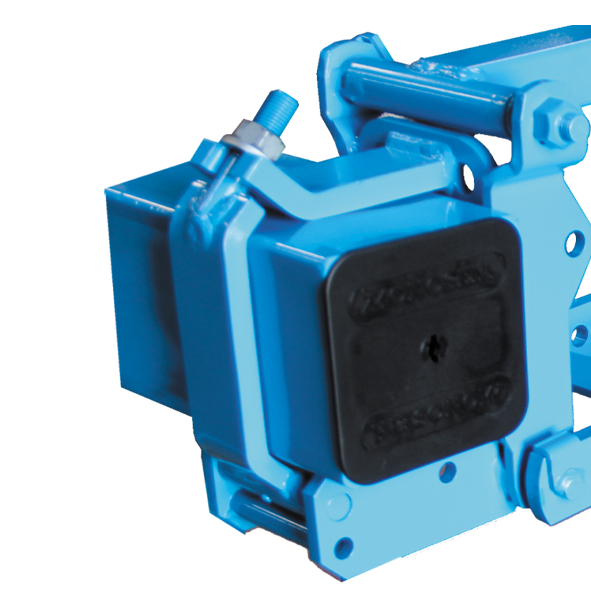

FIXING CLAMP
Units are fixed by tilting clamps with just one nut, which means that the units can be easily moved.
The wide span ensures perfect positioning of the unit when working.

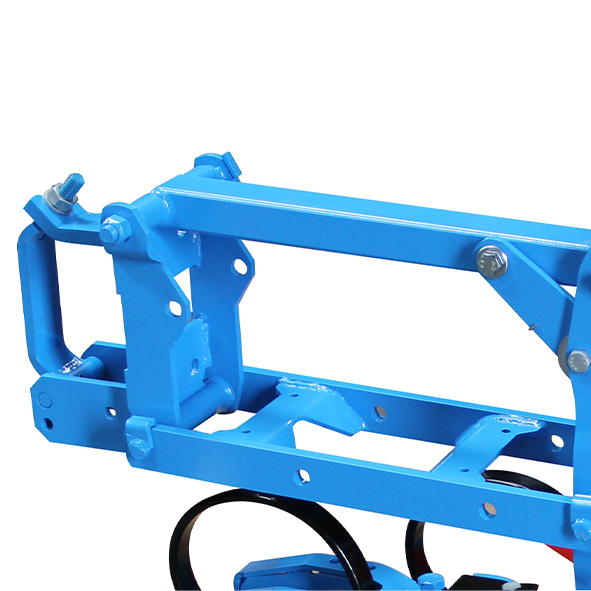

REINFORCED PARALLEL LINKAGE
The Multicrop reinforced parallel linkage is mounted on large-diameter shafts (16mm) with self-lubricating bushes. This parallel linkage has high clearance and is fitted with a lock catch to keep the unit in its raised position.

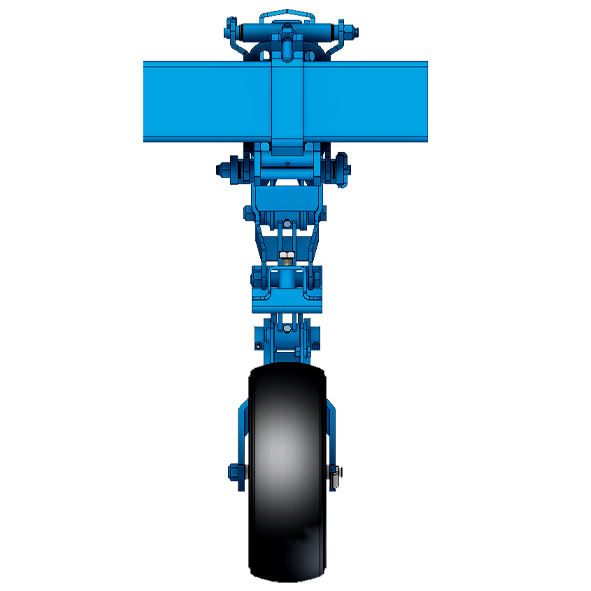

DEPTH CONTROL WHEEL
The front wheel for the Multicrop range has a large diameter (350mm) and is also wider than other models (120mm). This wheel is mounted on a reinforced one-piece bearing.

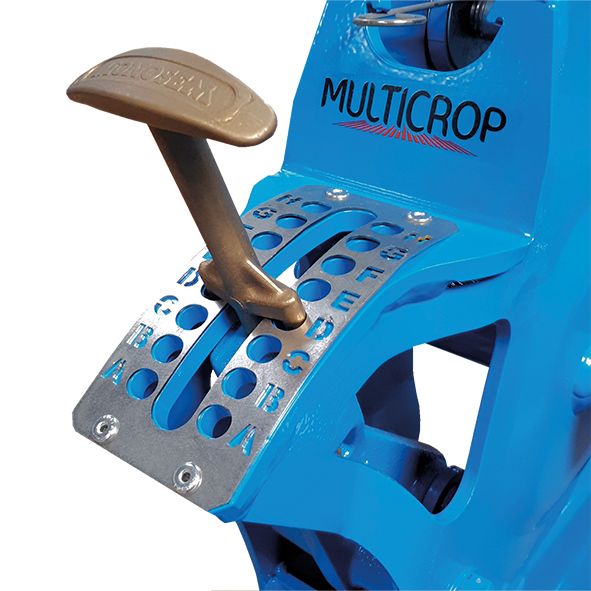

DEPTH ADJUSTMENT
Working depth is quick to adjust by notches (7.5mm increments).

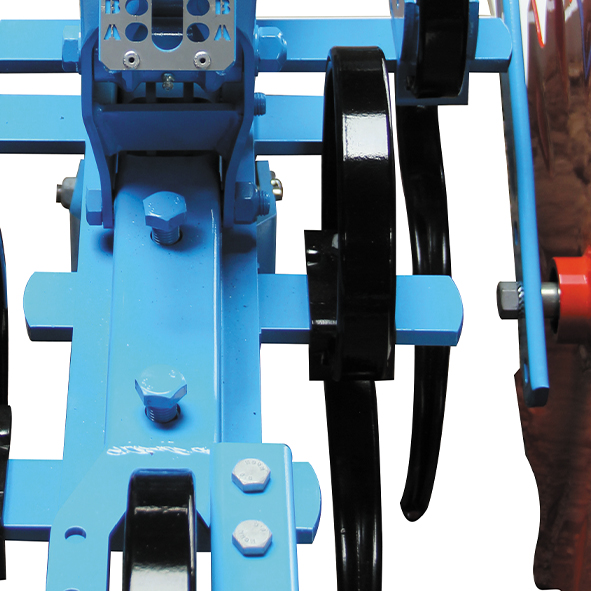

LATERAL ADJUSTMENT
The cross parts to which the tines are fastened are equipped with a fastening system based on a single central screw, making it easier to move the tines sideways.
SPECIAL STEEL UNIT CROSS PART (AVAILABLE IN DIFFERENT LENGTHS)
Accessory
SPRING TINE WITH 150 SWEEP SHARE (ALSO AVAILABLE WITH 105 SWEEP SHARE)
Accessory

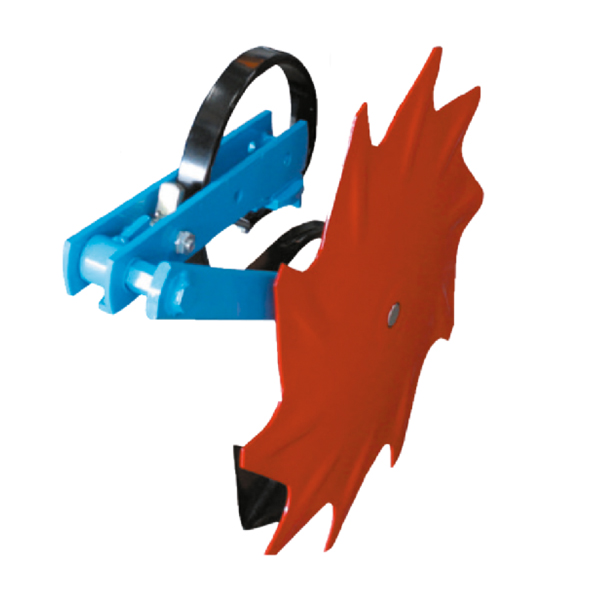

SPRING TINE WITH 150 SWEEP SHARE AND RETRACTABLE PLANT PROTECTION DISC
Accessory

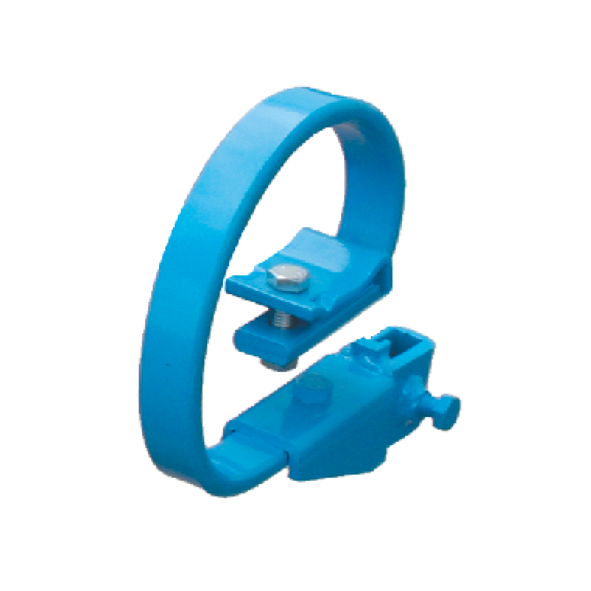

SPRING BRACKET FOR SHOVEL OR BLADE
Accessory
SHOVEL (AVAILABLE IN WIDTHS OF 14, 20, 25 AND 30)
Accessory

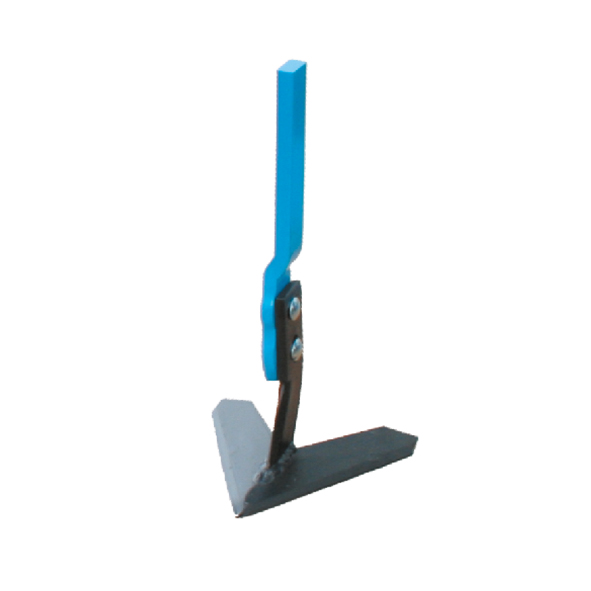

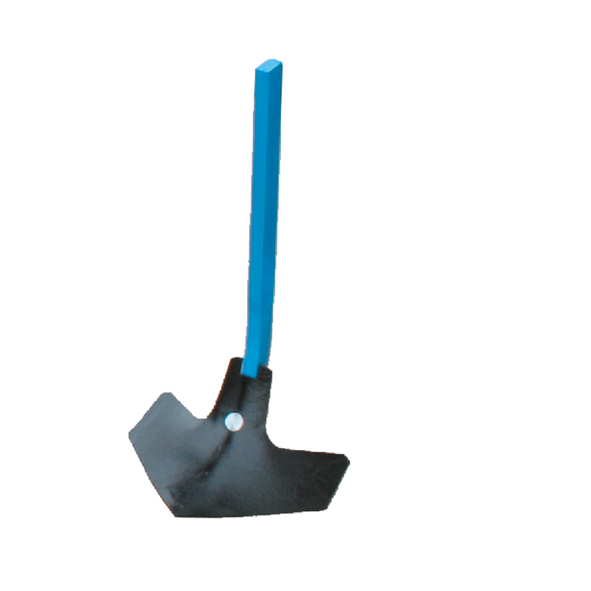

DUCKFOOT (AVAILABLE IN WIDTHS OF 20, 25 AND 30)
Accessory

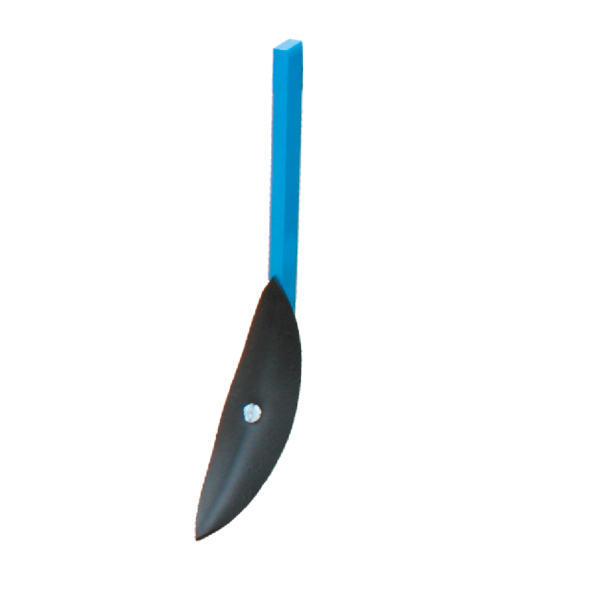

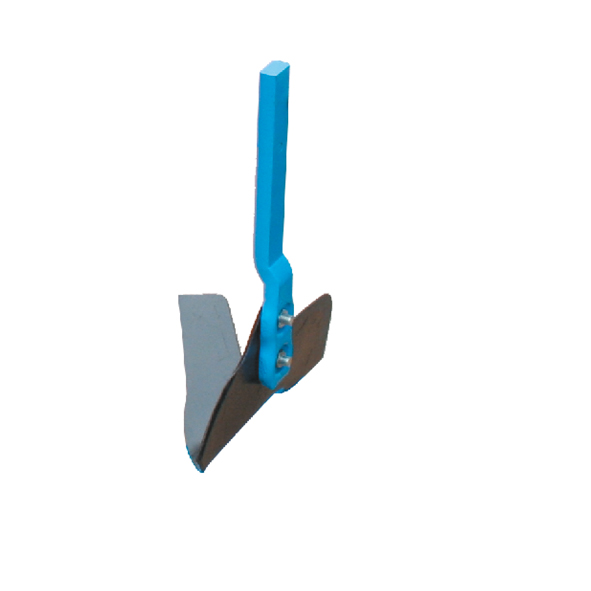

LELIÈVRE BLADE FOR MAIZE OR SUGARBEET
Accessory

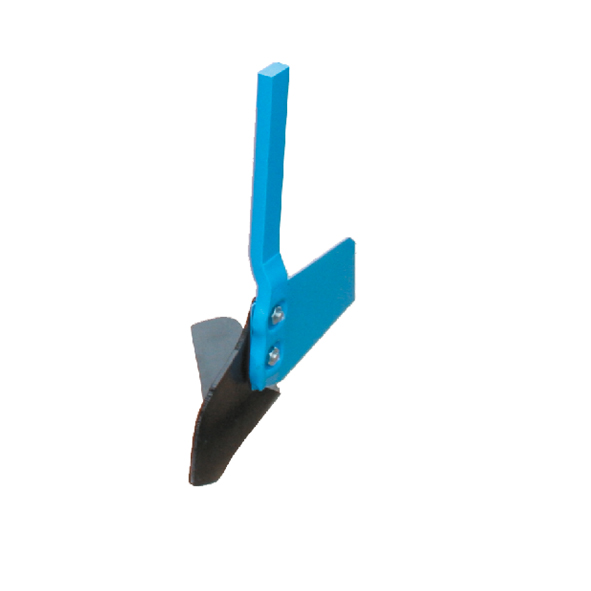

PLANET BLADE WITH OR WITHOUT CHEEK
Accessory
RIGID SHANK
Accessory

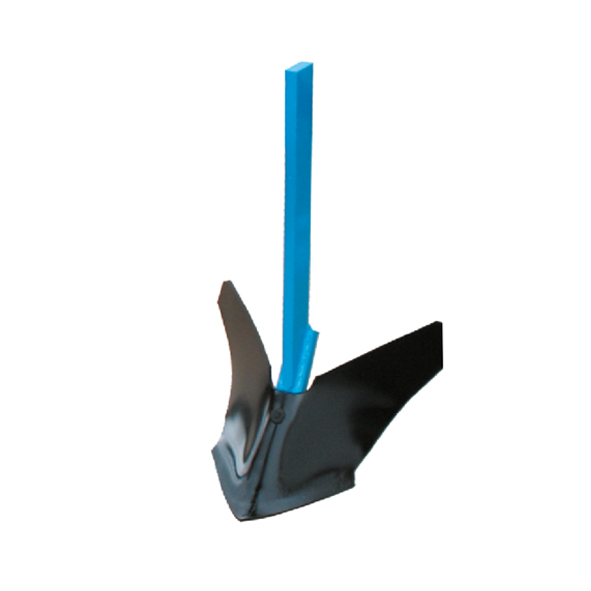

BEDDER (FIXED OR ADJUSTABLE)
Accessory
COMBS
Accessory
ADDITIONAL PRESSURE SPRINGS
Accessory

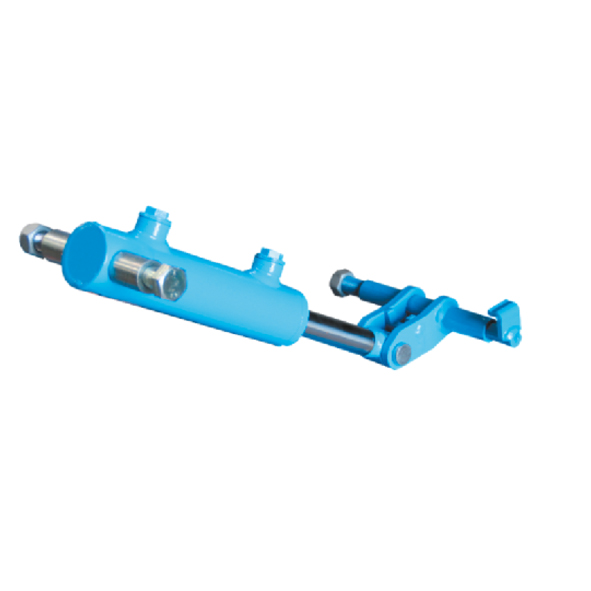

HYDRAULIC RAISING SYSTEM
Accessory
Units are fixed by tilting clamps with just one nut, which means that the units can be easily moved.
The wide span ensures perfect positioning of the unit when working.
The Multicrop reinforced parallel linkage is mounted on large-diameter shafts (16mm) with self-lubricating bushes. This parallel linkage has high clearance and is fitted with a lock catch to keep the unit in its raised position.
The front wheel for the Multicrop range has a large diameter (350mm) and is also wider than other models (120mm). This wheel is mounted on a reinforced one-piece bearing.
Working depth is quick to adjust by notches (7.5mm increments).
The cross parts to which the tines are fastened are equipped with a fastening system based on a single central screw, making it easier to move the tines sideways.
Accessory
Accessory
Accessory
Accessory
Accessory
Accessory
Accessory
Accessory
Accessory
Accessory
Accessory
Accessory
Accessory
THE VERSATILE, HEAVY-DUTY MULTICROP UNIT IS THE PERFECT TOOL FOR CULTIVATING ROW CROPS.
THE MULTICROP UNIT IS COMPATIBLE WITH MULTIPLE ACCESSORIES.
- Crop type
Maize, Sunflower, Beans; etc. - Number of rows
1 to 18 rows - Inter-row spacing
25cm to 90cm - Number of tools
1 to 5 + rear stand
THIS COMPACT MULTICROP UNIT IS SPECIALLY DESIGNED FOR CULTIVATING CROPS WITH LOW INTER-ROW SPACING SUCH AS CEREALS AND SUGARBEET.
IT CAN BE USED TO CULTIVATE UP TO 24 ROWS AT ONCE WITH INTER-ROW SPACING AS LOW AS 18CM.
- Crop type
Cereals Sugarbeet Rapeseed - Number of rows
1 to 24 rows - Inter-row spacing
18 cm to 65 cm - Number of tools
1 to 3 + rear stand
BENEFITS OF CULTIVATION
Monosem cultivators offer a highly effective means of optimizing your yield. They are designed to promote the development of your crops.
Below are 3 benefits of using a Monosem cultivator:
- Weed control, eliminating even the most resilient weeds
- Tillage effects (fertilizer mineralization, soil restructuring and warming)
- Improved biological activity of soil
- Pest control (slugs, etc.)
- Elimination of ground caking
- Fewer runs and less fertilizer (if applied locally during cultivation)
- A versatile cultivator that can be used on a wide variety of crops
- Less water required (1 cultivation is worth 2 irrigations)
- Lower quantities of plant protection products required
- Lower quantities of fertilizer required due to localized fertilizing
- Less water erosion
A game-changing concept
Section-control: hydraulic unit raising.
Ease of use and operating precision with the "Made by Monosem" seal of quality.
- Manual, by GPS or in-cab
- Just one terminal and one license for your planter and cultivator
- ISOBUS-compatible
The hydraulic unit raising system provides the key to precision cultivation by providing the option of raising individual units and thus cultivating as closely as possible to rows while also protecting seedlings at the field ends.
GUIDANCE SYSTEMS
We have the ideal guidance system for you based on your needs in terms of speed, precision and area requiring weed control.

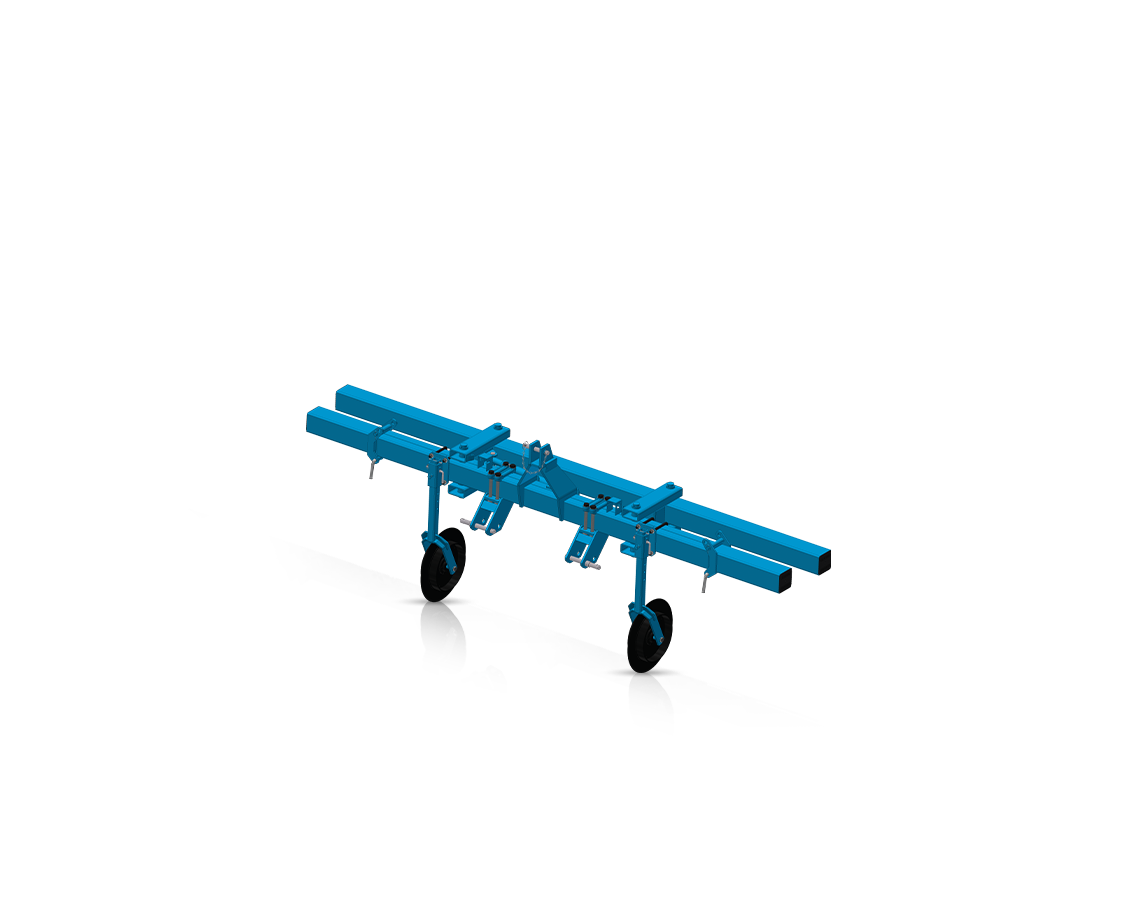

Automatic guidance
Cultivator units with automatic guidance by tracing disc, camera or feeler rods allow you to cultivate very closely to crops, increase your productivity, and benefit from their enhanced ease of use. The camera mounted on the cultivator can distinguish between crops and soil, hydraulically adjusting the cultivator units' line of travel for increased precision.

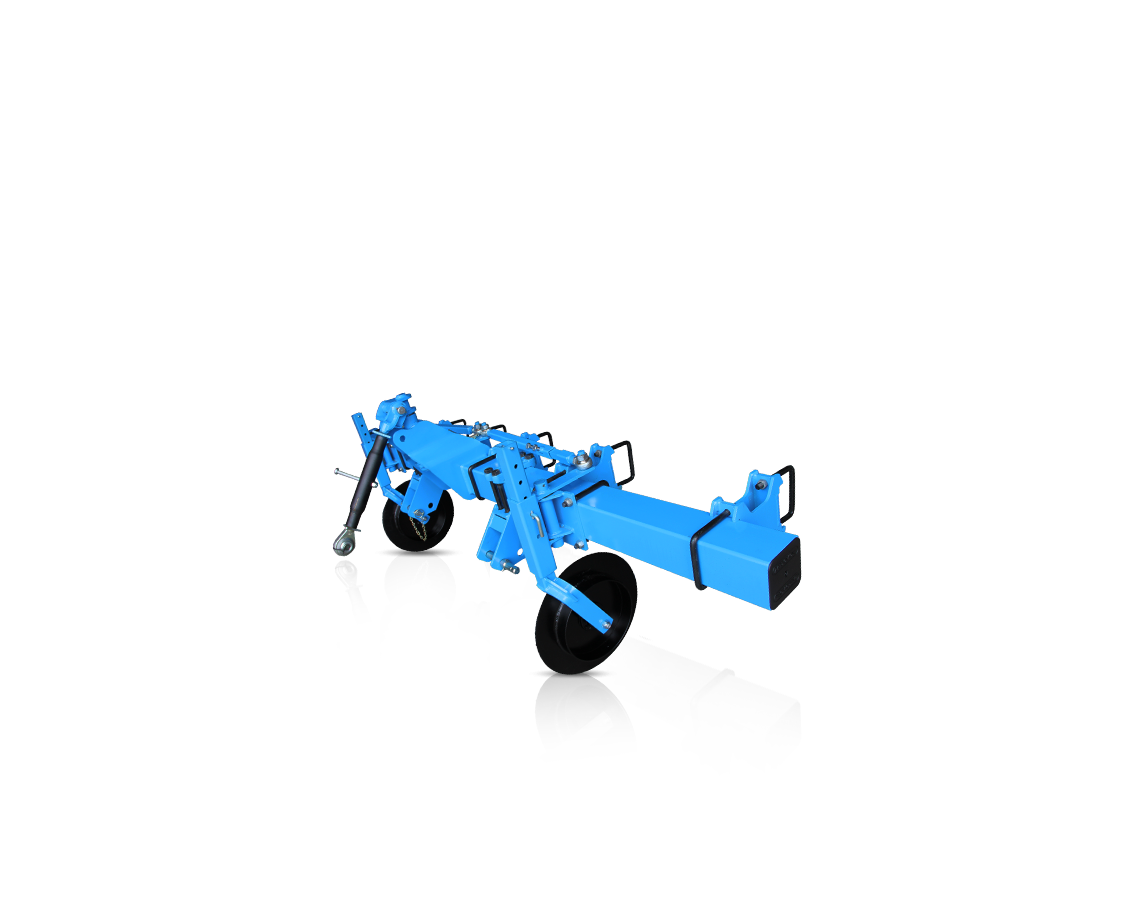

Mechanical guidance
Ideal for undulating and sloping land. Like a tag axle, the mechanical guidance system ensures that the cultivator follows the tractor perfectly for optimal cultivation on all terrain types.

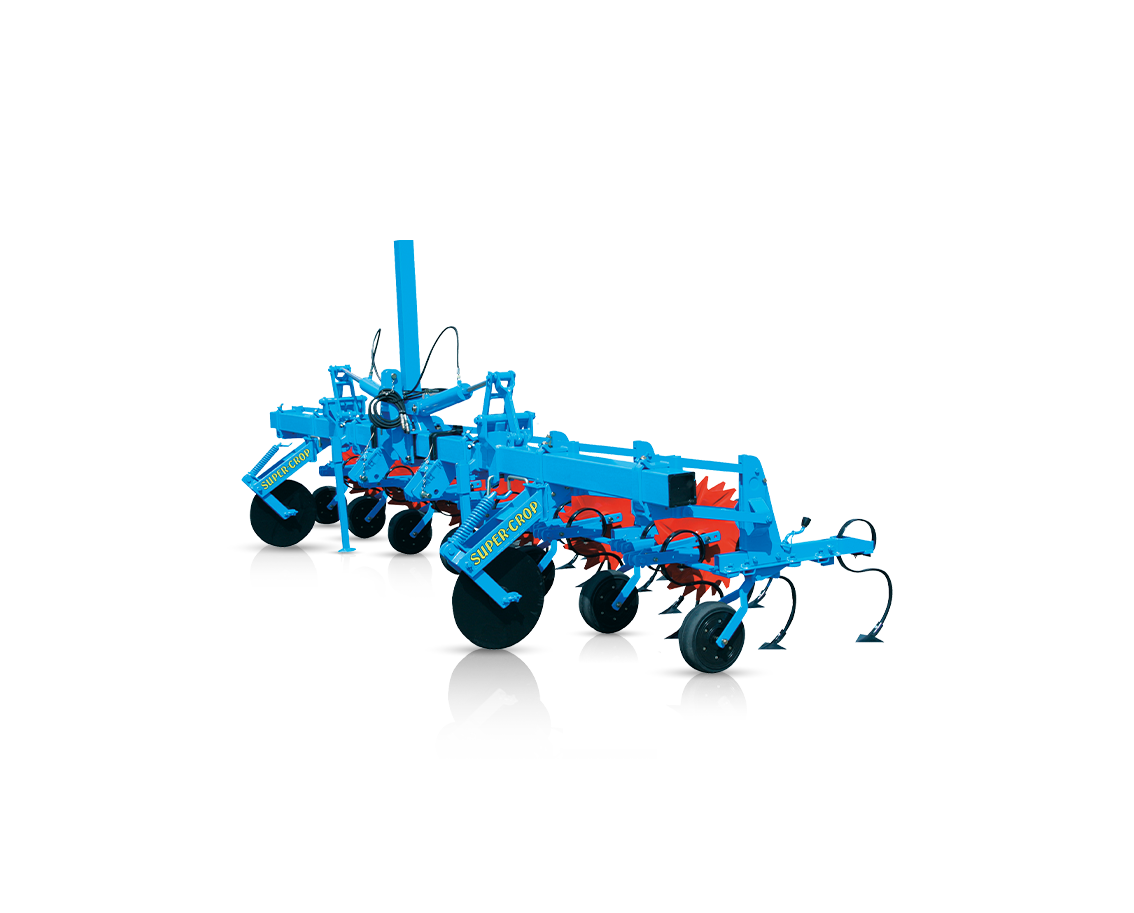

Self-guiding cultivator
Self-guiding cultivators are guided by disc coulters. These circular coulters allow the cultivator to follow the tractor perfectly in all cultivating conditions. This simple and economical system is ideal for crops with high inter-row spacing.

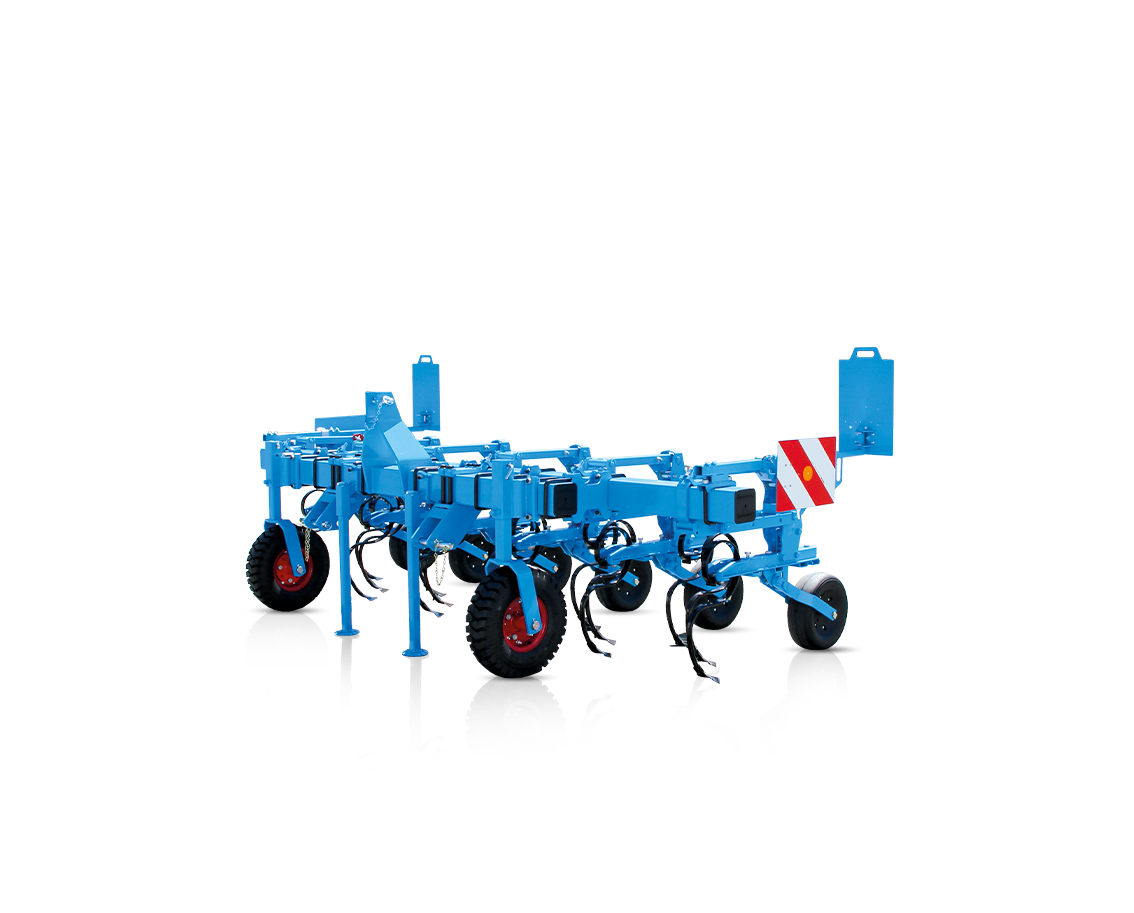

Front-mounted cultivator
When using front-mounted cultivators with inverted units, it is possible to cultivate very closely to crops due to the very high level of visibility they offer. This user-friendly mounting system reduces overhang and enables more accurate cultivation by following the direction taken by the tractor more closely.
Lelièvre shovels and blades
A shovel that weeds between rows combined with a Lelièvre blade ideal for cultivating very close to the row. The Lelièvre blade is specially designed to cultivate on just one part of the tine, which is why it gets so close to the crops.
The shovel is also available with Planet blades suitable for delicate crops

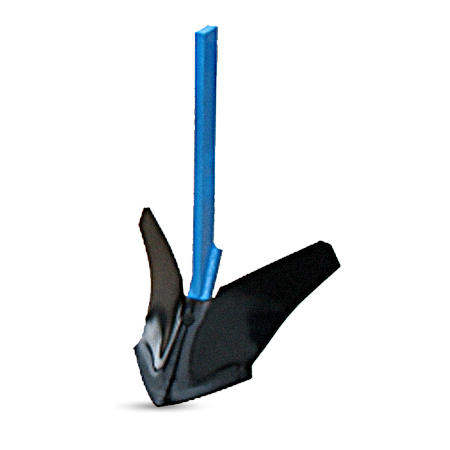

Bedder
The bedder is designed to earth up crops and cover any weeds growing on a row.

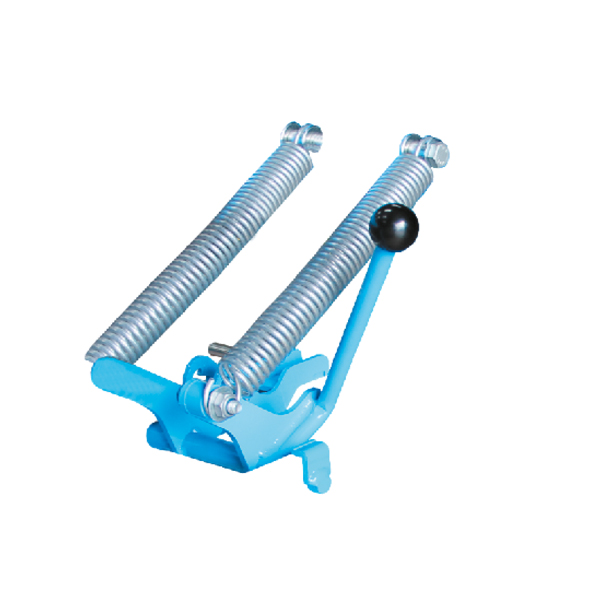

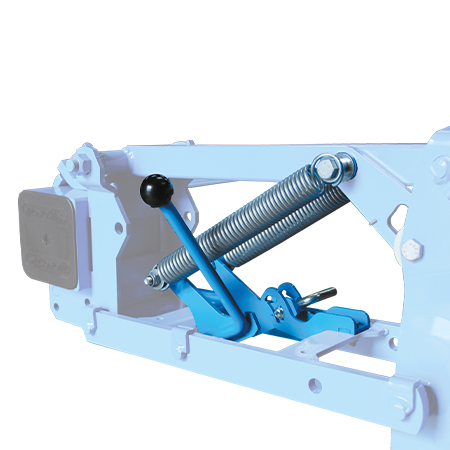

Additional pressure spring kit
The additional pressure spring helps penetrate even the hardest soils.

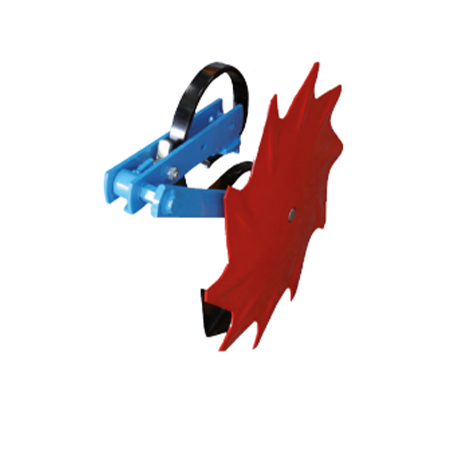

Plant protection disc
This protects the rows during cultivation. The discs ensure safe cultivation.

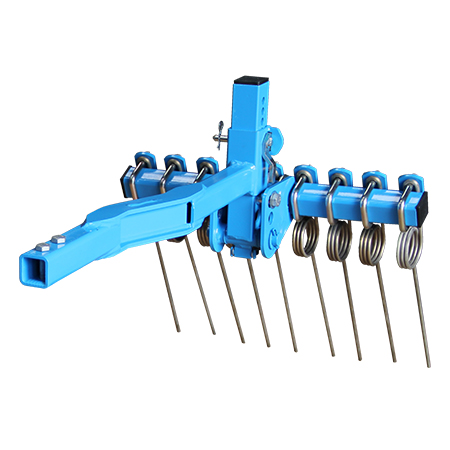

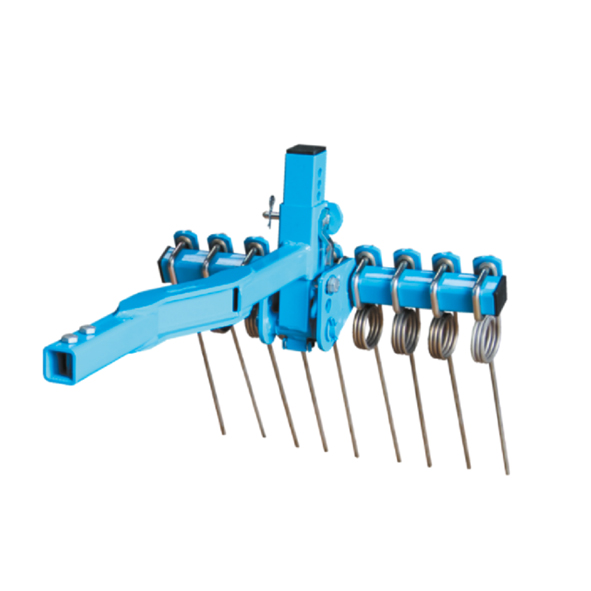

Comb
Double the cultivation efficiency: with their roots revealed, weeds dry out faster in the sun. The comb also levels the soil.
Tined weeder by ERMAS
This is ideal for stony and/or trashy soil to avoid jamming.

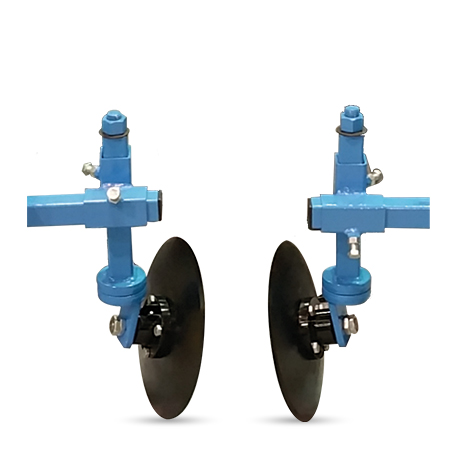

Bedding discs by ERMAS
Suffocates weeds on the row by covering them with soil.
Continually adjustable plant protection plate by ERMAS
This item can be adjusted to crops' stage of growth, protecting rows during cultivation. Particularly suitable for sugarbeet and vegetables.

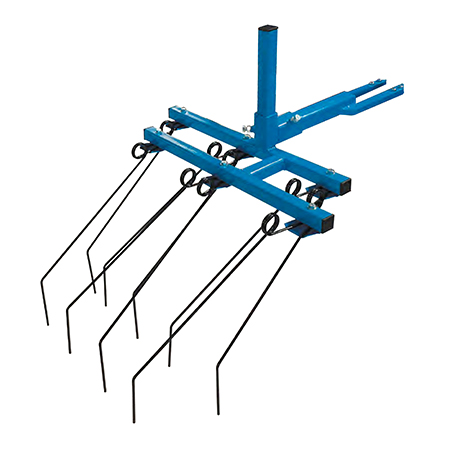

Finger weeders by ERMAS
These should be used when crops are sufficiently developed for weeds to be uprooted on the row.

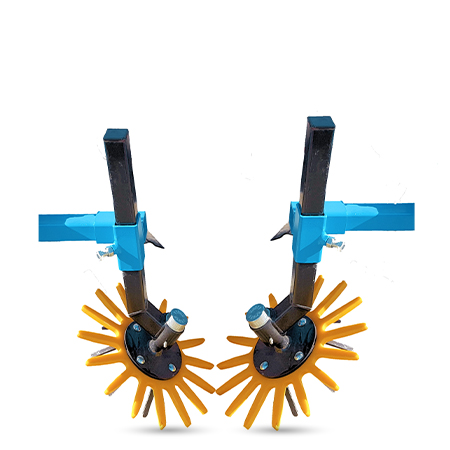

Rotative weeder by ERMAS
The rotative weeder is used at the early stages of crop development to uproot any weeds growing on the row. It also removes crusting from areas that have not been cultivated by tines.
WHY CHOOSE the Multicrop planter ?
Customizable
Choice of accessories, frames, and guidance systems to meet your requirements
Triple action
Inter-row cultivation, row protection and on-row cultivation
Connectivity enhancing ease of use
Section-control, ISOBUS-compatible
WHY CHOOSE the Multicrop planter ?
Customizable
Choice of accessories, frames, and guidance systems to meet your requirements
Triple action
Inter-row cultivation, row protection and on-row cultivation
Connectivity enhancing ease of use
Section-control, ISOBUS-compatible
EXPERIENCE THE MULTICROP CULTIVATOR IN ACTION
Tried
and tested in the field
12-row Multicrop cultivator in operation
With its camera guidance system, this top-performing machine breaks through ground caking and removes weeds! It is equipped with feeler rods, tined weeders, combs, finger weeders and section-control marking it out as the perfect solution for forward-looking farmers keen to address environmental issues.

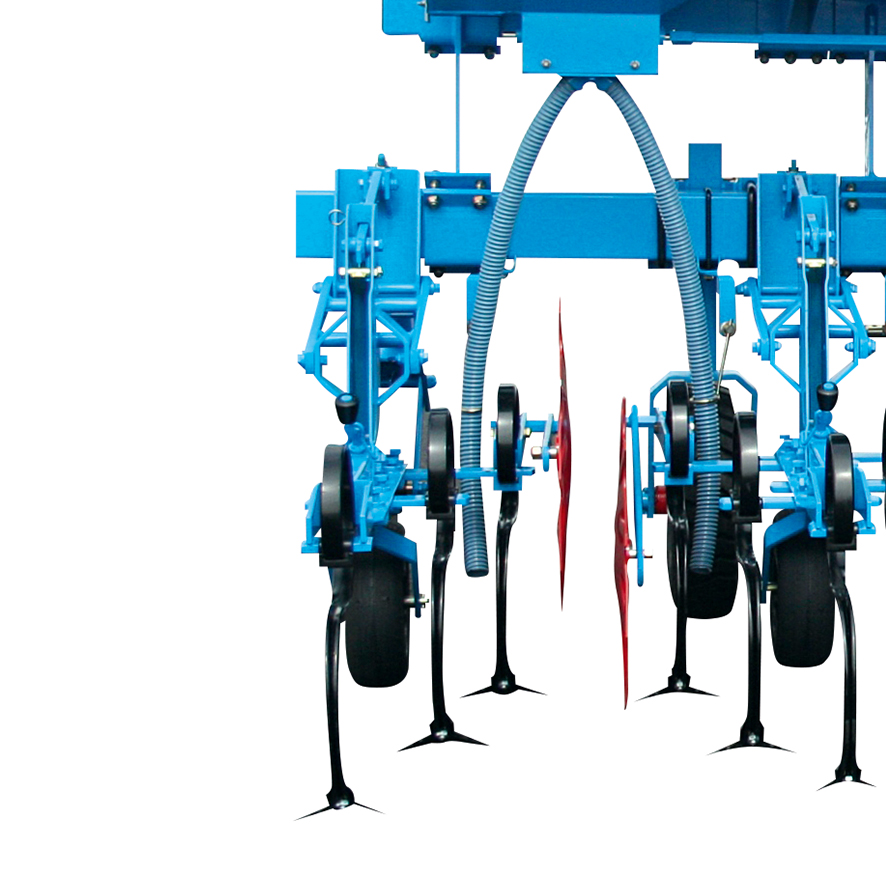

FERTILIZING SYSTEMS
Our mounted fertilizer unit for localized application is a sturdy fertilizer system providing a perfect fit for your cultivating conditions. Fertilizer is evenly distributed using a system combining auger-based metering and agitators. Stainless-steel augers with different pitches are available, ensuring that exactly the required quantity is metered.

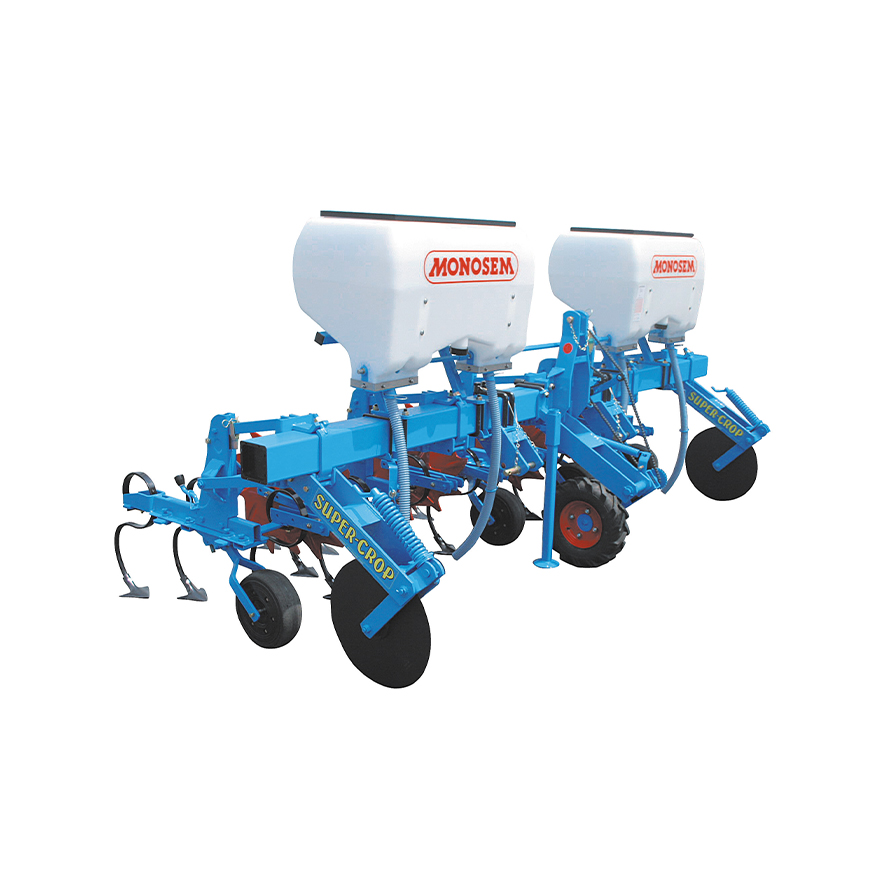

Standard mounted plastic hoppers are available in two sizes.
- 175L hopper with 2 or 3 outlets
- 270L hopper with 3 outlets
These can be mounted on rigid cultivators (4 to 12 rows) or folding cultivators (4 to 6 rows)

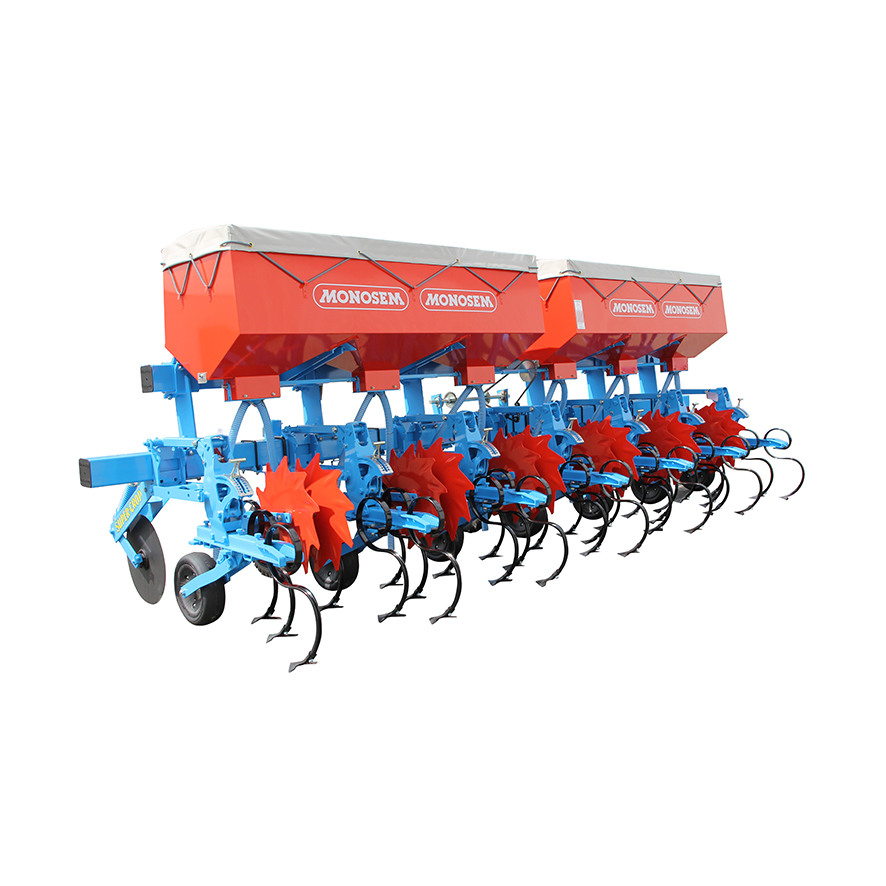

"High-capacity" sheet-metal hoppers are available for 4 to 6-row cultivators with rigid frames. The hoppers have large openings, which means they can be loaded easily using 500 or 600kg bags and offer total capacity of 700 or 1,000L.

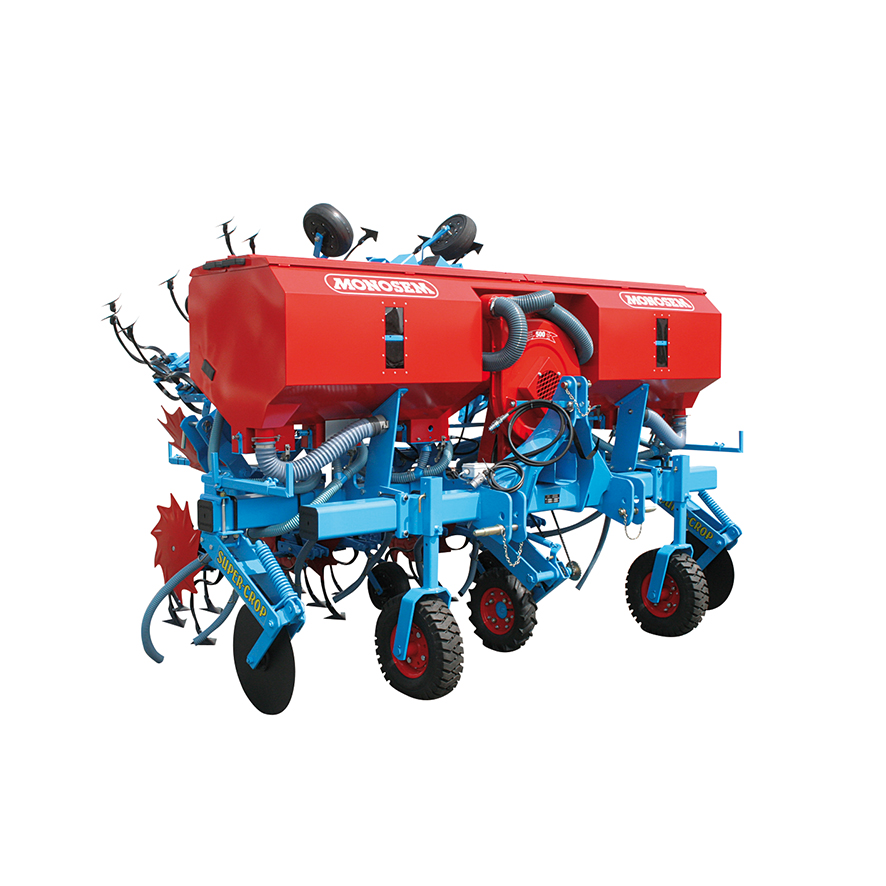

These 980L hoppers with air-driven outer rows are available for 6-row folding cultivators. They are easy to load with their V-shaped opening and simple to empty using the hatch and tube. Fertilizer levels can also be inspected visually from the tractor cab through the transparent windows.
Fertilizer can be applied locally to one side of the row or on either side. It is subsequently buried by the cultivator tines.
Fertilizer is evenly distributed using a system combining auger-based metering and agitators. Stainless-steel augers with different pitches are available, ensuring that exactly the required quantity is metered.
The standard augers are blue and meter 80 to 350kg/ha of fertilizer at inter-row spacing of 75cm.
The high-output augers are red and meter 160 to 700kg/ha of fertilizer at inter-row spacing of 75cm
A 12-ratio gearbox is used to adjust the quantity of fertilizer metered during planting.
- Using the chart
A WIDE RANGE OF FRAMES
Monosem supplies a full range of frames that are both durable and flexible to meet all your requirements.
Choose a frame that suits your requirements

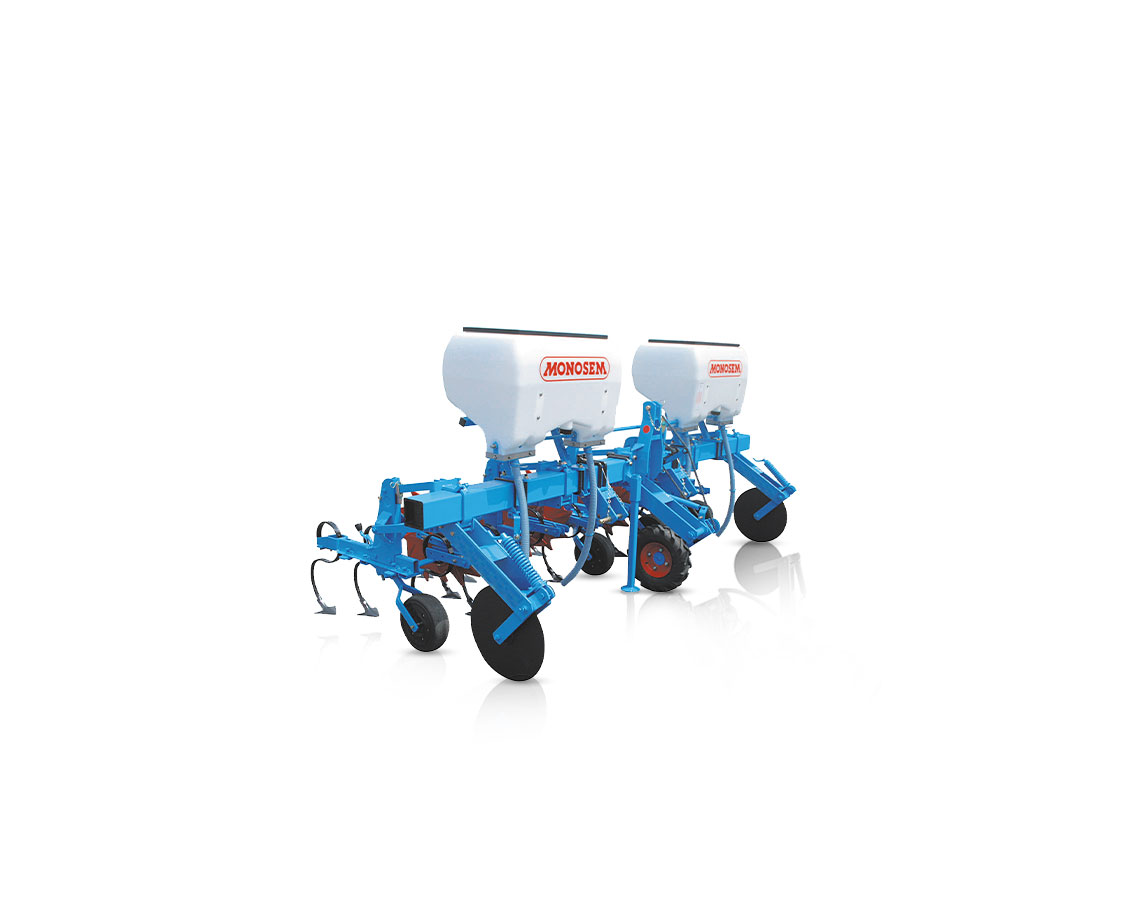

Rigid frames
Transport carriage available
Whether you require a monoblock, monobar or double-bar frame, take a look at our comprehensive range for inspiration. Our rigid frames are sure to meet all your requirements. They are economical, heavy-duty and reliable giving you peace of mind during planting.
4-12
rows
45 cm - 80 cm
3.5 - 6.6 m
3.5 - 6.6 m

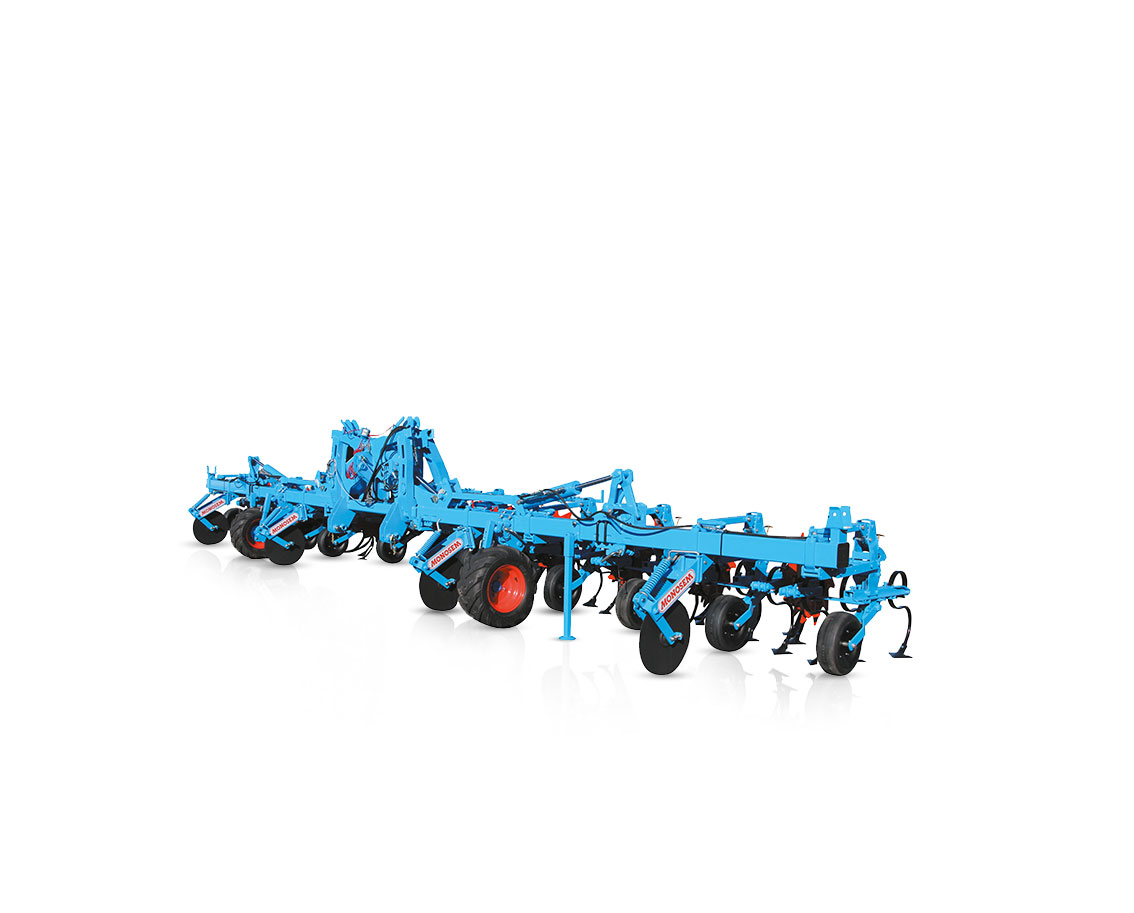

Hydraulic folding frames
These frames with a hydraulic raising system are easy to transport and enable versatile cultivation. Their raising system saves you operating time.
6 - 18
rows
45 cm - 80 cm
4.9 m - 8.9 m
3 m - 3.5 m

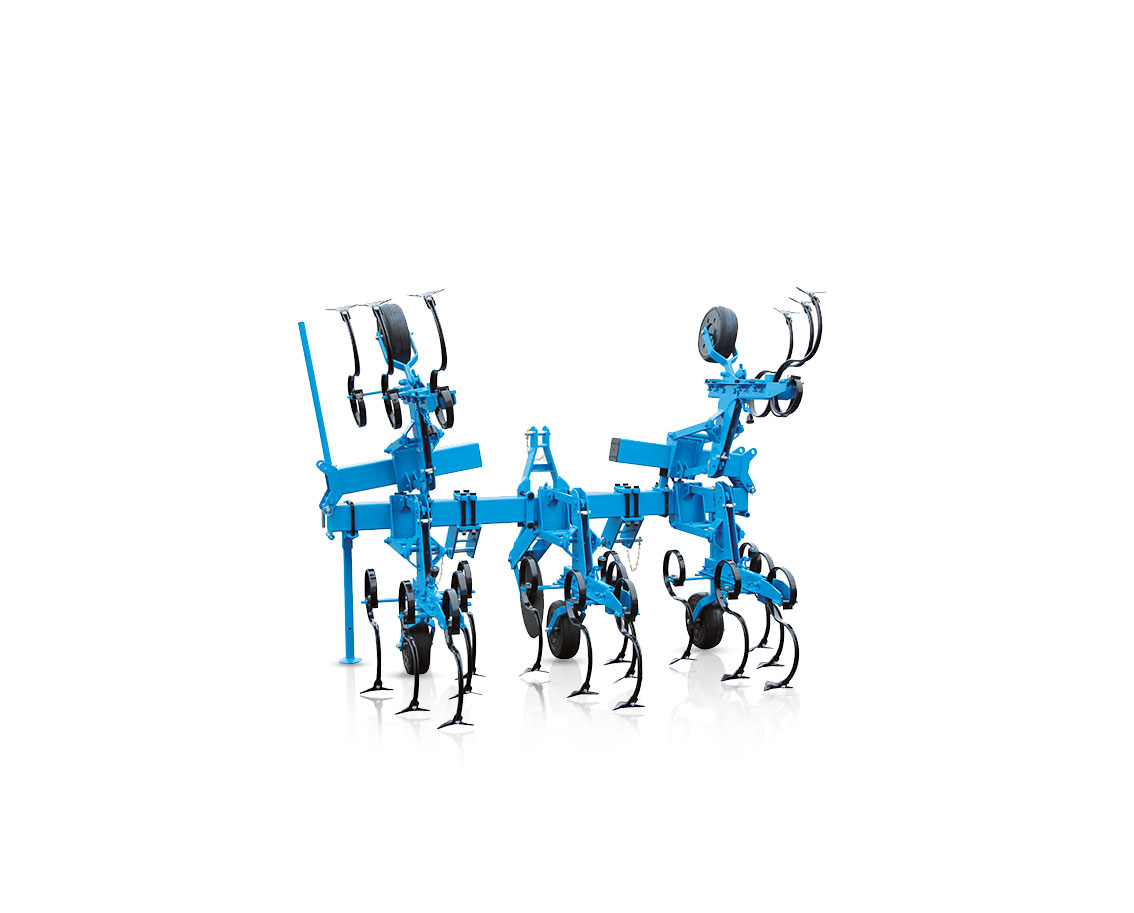

Manual folding frames
Manual folding frames facilitate road transport of cultivators with a lever enabling outer units to be folded in. This economical folding frame model gives you the option of different working widths.
4 - 6
rows
60 cm - 80 cm
3.7 m - 5 m
2.2 m - 3.6 m
multicrop Cultivator
(COMPACT VERSION AVAILABLE)
FEATURES
CROP TYPE
Maize
Sunflower
Beans... (Cereals, Sugarbeet, Rapeseed, etc.)
NUMBER OF ROWS
1 to 18 rows (1 to 24) rows
INTER-ROW SPACING
25cm to 90cm (18cm to 65cm)
NUMBER OF TOOLS
1 to 5 + rear stand (1 to 3 + rear stand)
CROP TYPE
Maize
Sunflower
Beans... (Cereals, Sugarbeet, Rapeseed,etc.)
NUMBER OF ROWS
1 to 18 rows (1 to 24) rows
INTER-ROW SPACING
25cm to 90cm (18cm to 65cm)
NUMBER OF TOOLS
1 to 5 + rear stand (1 to 3 + rear stand)
ARE YOU INTERESTED?
Don't delay a second longer
Documents
Download our manuals and brochures to find out more about our Multicrop cultivator
